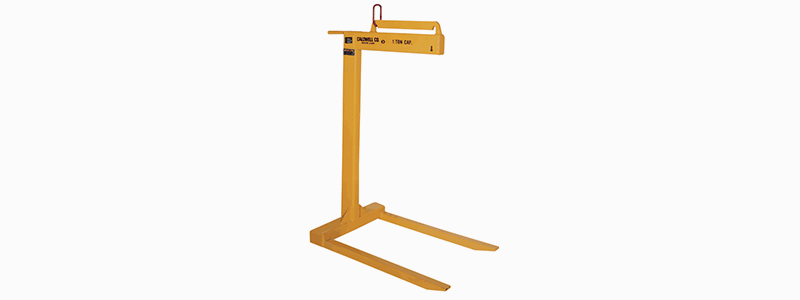

Lightweight Pallet Lifter
Dual lift points to eleminate the need for a counter weight.
Product Features
- Dual lift points eliminates need for counterweight.
- Extremely lightweight for ease of handling.
- Maintenance free – no moving parts.
- Complies with ASME standards.
Product Specifications
| Model 94 Specifications | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model numbers shown in red are part of our QUICKSHIP program. | ||||||||||||
| Model Number | Capacity (tons) | L (in.) | M (in.) | N (in.) | W (in.) | E (in.) | A (in.) | B (in.) | C (in.) | J (in.) | HR (in.) | Weight (lbs) |
| 94-1-48 | 1 | 36 | 2 | 2 | 25 | 24 | 1/2 | 2-1/2 | 3-3/4 | 48 | 58 | 245 |
| 94-2-48 | 2 | 36 | 4 | 2 | 25 | 24 | 3/4 | 2-3/4 | 4-1/2 | 48 | 62 | 425 |
| 94-3-48 | 3 | 36 | 4-1/2 | 2-1/2 | 27 | 24 | 1 | 3-1/2 | 5 | 48 | 65 | 610 |
