Product Features

  • Heavy duty design.
  • These grabs provide an efficient method for handling wide flange beam sections and plate girders.
  • Clamps have a recessed base to accept studs welded to a beam’s surface.
  • Beam grabs eliminate the need for slings or chokers.

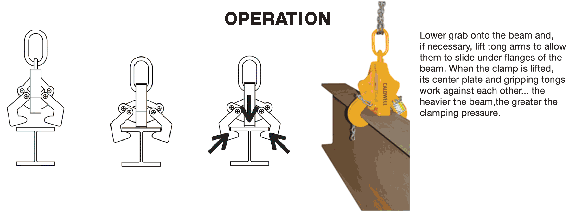

  • Use only for vertical lifting.

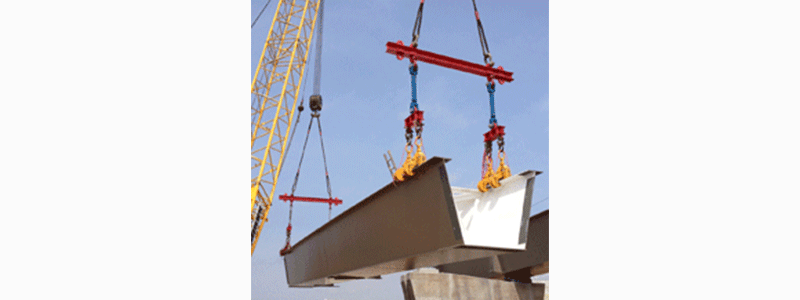

  • For longer beams or girders, use units in pairs in conjunction with a spreader/lifting beam.
  • Complies with ASME standards.

Product Specifications

Model F Specifications
Model numbers shown in green are part of our INSTOCK program.
Model Number Rated Capacity (tons) A (in.) B (in.) C (in.) W (in.) Min Flange Thickness Max Flange Thickness S (in.) N (in.) T (in.) M (in.) L (in.) P (in.) Weight (lbs.)
F-5 5 22.70 15.70 11.60 4 .25 .25 3 3 2 4.60 .50 .50 68
F-5 5 22.70 15.70 11.60 5 .25 .38 3 3 2 4.60 .50 .50 68
F-5 5 22.70 15.70 11.60 6 - 10 .25 1 3 3 2 4.60 .50 .50 68
F-15 15 30.10 25.10 17.50 7 .50 .75 4 4 2.50 7.30 .90 .80 182
F-15 15 30.10 25.10 17.50 8 .50 1 4 4 2.50 7.30 .90 .80 182
F-15 15 30.10 25.10 17.50 9 .50 1.25 4 4 2.50 7.30 .90 .80 182
F-15 15 30.10 25.10 17.50 10 .50 1.25 4 4 2.50 7.30 .90 .80 182
F-15 15 30.10 25.10 17.50 11 - 17 .25 2 4 4 2.50 7.30 .90 .80 182
F-25 25 44.80 45.20 24.50 16 - 17 1.25 3 5.50 6 4 9.80 1.30 .80 541
F-25 25 44.80 45.20 24.50 18 - 24 1 3 5.50 6 4 9.80 1.30 .80 541
F-35 35 52.90 61.60 28.50 16 - 18 2.25 4 6 9.30 4.50 8.50 .80 .80 841
F-35 35 52.90 61.60 28.50 20 - 22 2 4 6 9.30 4.50 8.50 .80 .80 841
F-35 35 52.90 61.60 28.50 24 1.75 4 6 9.30 4.50 8.50 .80 .80 841
F-35 35 52.90 61.60 28.50 26 1.75 4 6 9.30 4.50 8.50 .80 .80 841
F-35 35 52.90 61.60 28.50 28 -36 1 4 6 9.30 4.50 8.50 .80 .80 841
Base Dimensions - Models have bases cut out to avoid interference of studs.
