Girder Clamps
Model GC-25 Girder Clamp shown.
Product Features
- These clamps provide an efficient method for handling wide flange beam sections and plate girders.
- Screw-spindle design ensures positive grip.
- Simple design ensures minimum maintenance.
- Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping.
- Jaw opening adjusts to a wide range of beam types and flange widths.
- Use only for vertical lifting.
- Complies with ASME standards.
Product Specifications
| Model GC Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model numbers shown in green are part of our INSTOCK program. | |||||||||||

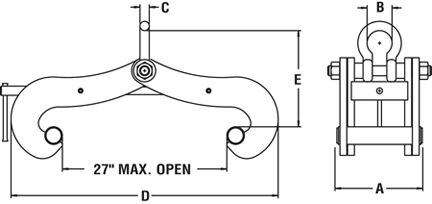

| Model Number | Rated Capacity (tons) | Flange Width Min. - Max. (in.) | Max. Flange Thickness (in.) | A (in.) | B (in.) | C (in.) | D Min. - Max. (in.) | E Min. - Max. (in.) | Weight (lbs.) | ||
| GC-15 | 15 | 6 - 24 | 3 | 14.81 | 3.9 | 1.6 | 23 - 44 | 15.7 - 23.4 | 234 | ||
| GC-20 | 20 | 6 - 24 | 3 | 14.81 | 5 | 2.1 | 23 - 44 | 18.3 - 25.9 | 291 | ||
| GC-25 | 25 | 6 - 24 | 3 | 14.81 | 5 | 2.1 | 23 - 44 | 18.3 - 25.9 | 342 | ||
