Beam Grabs Extended

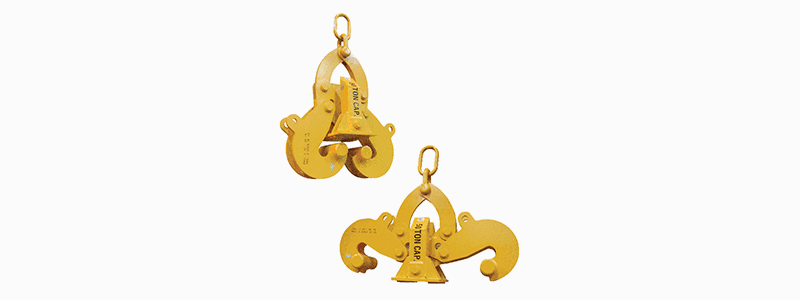

50 ton unit for flange widths from 30-48" shown.
Product Features
- Custom designed for your application.
- Heavy duty grab handles wide flange beam sections and plate girders.
- Dog points on base furnish additional gripping force.
- Hook design assures contact to the beam flange or girder.
- Both hooks have chain holes – attach chain slings and use for opening hooks.
- Adjustable hook positions fit a set range of flange widths.
- For long loads, use two heavy-duty beam clamps and one spreader beam.
- Complies with ASME standards.
Product Specifications
| Model F-50 Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Model Number | Rated Capacity (tons) | A (in.) | B (in.) | C (in.) | W (in.) | S (in.) | Weight (lbs.) |
| F-50 | 50 | 83 | 80 | 30 | 30-40 | 22 | 2800 |
