Beam Tongs

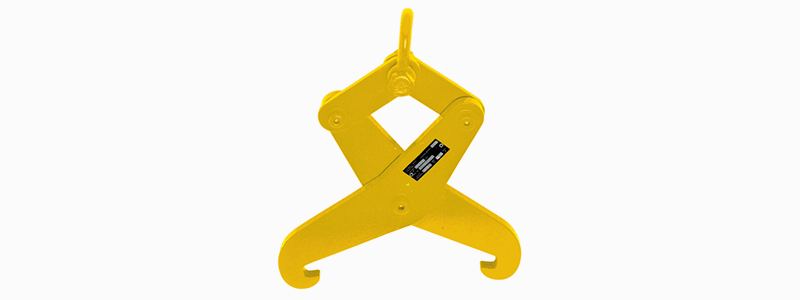

Model 111-1 Beam Tong shown.
Product Features
- Tong provided with lifting shackle.
- Load must be balanced and controlled when lifting.
- Use only for vertical lifting.
- For added stability when handling longer loads, use in pairs with a spreader beam.
- Complies with ASME standards.
Product Specifications
| Model BT Specifications | |||||
|---|---|---|---|---|---|
| Model numbers shown in green are part of our INSTOCK program. | |||||
| Model Number | Rated Capacity (tons) | Beam Width Min. - Max. (in.) | Flange Thickness Max. (in.) | A (in.) | Weight (lbs.) |
| 111-1 | 1 | 5 - 6 | 5/8 | 17 | 15 |
| 111-2 | 2 | 6.50 - 8 | 3/4 | 19 | 18 |
| 111-3 | 3 | 7.50 - 10 | 3/4 | 19 | 21 |
