Adjustable Lifting Beam

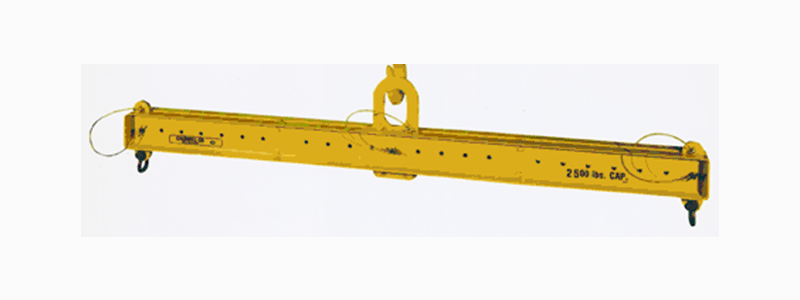

Model 17-2-6 shown.
Product Features

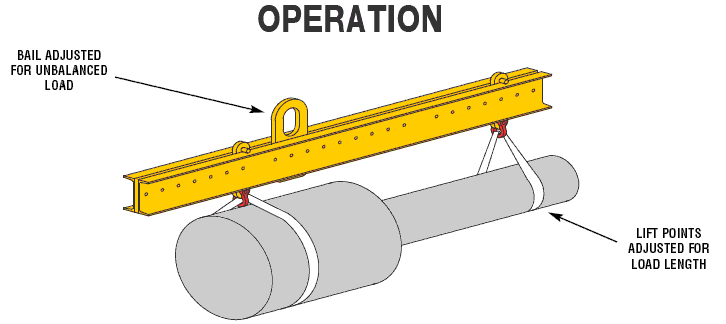

- Bail adjusts horizontally for lifting unbalanced loads.
- Provides clearance in low headroom applications.
- Spread adjusts in 6” increments along lifting beam.
- Shackles included.
- Optional swivel hooks available.
- Complies with ASME standards.
Product Options
- OPTION S – Pair of swivel hooks
Product Specifications
| Model 17 Specifications | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model numbers shown in green are part of our INSTOCK program. | ||||||||||||

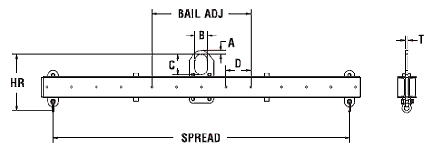

| Model Number | Rated Capacity (tons) | Spread Max. (in.) | Spread Min. (in.) | Bail Adj. Range (in.) | D (in.) | HR (in.) | Shackle Size (tons) | A (in.) | B (in.) | C (in.) | T (in.) | Weight (lbs.) |
| 17-1 1/4-6 | 1-1/4 | 72 | 36 | 24 | 3 | 14.7 | 2 | 1-1/2 | 3 | 5 | 5/8 | 150 |
| 17-2-6 | 2 | 72 | 36 | 24 | 3 | 14.7 | 2 | 1-1/2 | 3 | 5 | 5/8 | 155 |
| 17-4-8 | 4 | 96 | 54 | 36 | 6 | 19.8 | 3-1/4 | 2 | 4 | 7 | 3/4 | 285 |
| 17-5-10 | 5 | 120 | 60 | 36 | 6 | 22.4 | 4-3/4 | 2 | 4 | 7 | 1 | 475 |
