Modular Spreader Beam

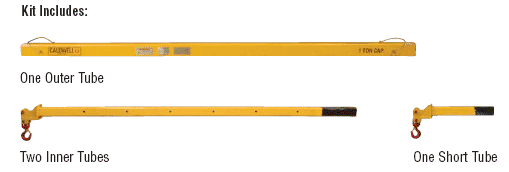

1 Ton Modular Spreader Beam shown.
Product Features
- Beam length extends from 10′ to 22′.
- Capacities in 1 and 2 ton.
- Lightweight.
- Faspin with lanyard allows for quick adjustment of spread in 1′ increments.

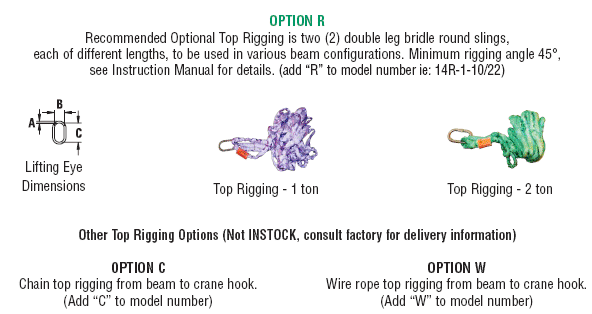

- Hair pin cotter top rigging attachment.
- Complies with ASME standards.
Product Specifications
| Model 14 Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model Number | Capacity (tons) | Spread (ft.) Min. - Max. | HR Min. (in.) | HR Max. (in.) | A (in.) | B (in.) | C (in.) | O-Hook Opening (in.) | Weight (lbs.) |
| 14-1-10/22 | 1 | 10/22 | 135.6 | 150.7 | 0.5 | 2.5 | 5 | 0.97 | 195 |
