Product Features

  • Converts to spreader beam with addition of top rigging.
  • Has adjustable lifting points.

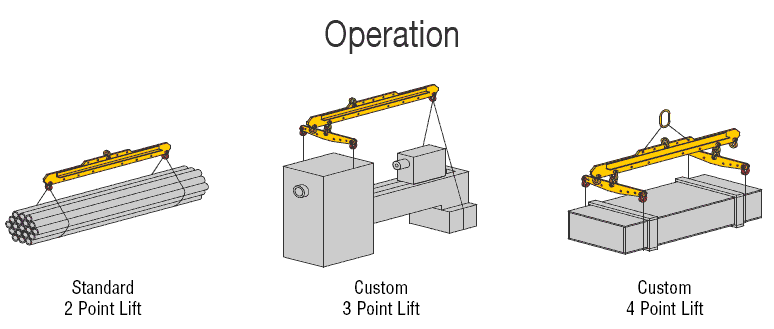

  • Can handle both wide and unbalanced loads.
  • Low headroom capability.
  • Shackles included.
  • Optional swivel hooks available.
  • Optional chain top rigging available.
  • Complies with ASME standards.

Product Options

  • OPTION S – Pair of swivel hooks
  • OPTION C – Chain top rigging
  • Cross beams (one or two) specify spread(s) consult factory

Product Specifications


Model 16 Specifications
Model numbers shown in red are part of our QUICKSHIP program.
Model numbers shown in green are part of our INSTOCK program.

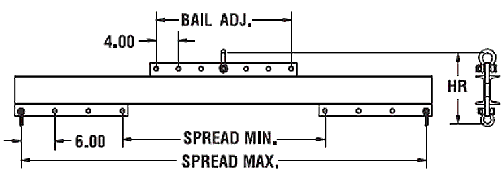

Model Number Rated Capacity (tons) Spread Max. (in.) Spread Min. (in.) Bail Adj. (in.) HR (in.) Bolt Type (tons) - Top Bolt Type (tons) - Bottom Weight (lbs.)
16-1/4-4 1/4 48 12 16 7.13 1.5 1.5 40
16-1/2-4 1/2 48 12 16 7.13 1.5 1.5 40
16-1/2-6 1/2 72 36 24 10.00 1.5 1.5 100
16-1/2-8 1/2 96 48 32 10.00 1.5 1.5 135
16-1/2-10 1/2 120 60 40 10.00 1.5 1.5 145
16-1-6 1 72 36 24 10.00 1.5 1.5 100
16-1-8 1 96 48 32 11.00 1.5 1.5 140
16-1-10 1 120 60 40 11.00 1.5 1.5 175
16-2-6 2 72 36 24 12.50 3.25 2 130
16-2-8 2 96 48 32 13.50 3.25 2 200
16-2-10 2 120 60 40 14.50 3.25 2 280
16-4-8 4 96 48 32 16.75 4.75 4.75 290
16-4-10 4 120 60 40 18.75 4.75 4.75 420
16-4-12 4 144 72 48 18.75 4.75 4.75 500
16-5-8 5 96 48 32 18.75 6.5 4.75 320
16-5-10 5 120 60 40 20.25 6.5 4.75 465
16-5-12 5 144 72 48 20.25 6.5 4.75 550
16-7-12 7 144 72 48 23.75 8.5 6.5 790
