Product Features

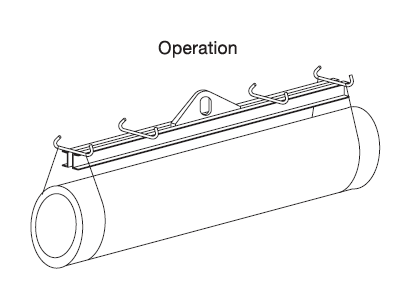

  • Designed to be used with slings in a basket hitch.
  • Provides greatest clearance in low headroom applications.
  • Two sets of bent bar hooks are standard on units with a spread of 6’ and greater.
  • Spread 2 is 1/2 of spread 1.
  • Hooks are designed to handle up to a 2” sling eye width.
  • Complies with ASME standards.

Product Specifications


Model 18 Specifications
Model numbers shown in red are part of our QUICKSHIP program.

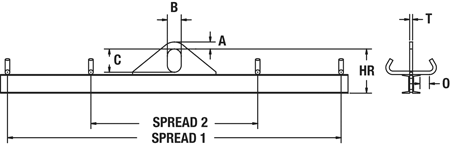

Model Number Capacity (tons) HR (in.) A (in.) B (in.) C (in.) T (in.) O (in.) Spread (ft.) Weight (lbs.)
18-1/2-3* 1/2 8-1/2 7/8 3 5 3/4 2 3 40
18-1/2-4* 1/2 8-1/2 7/8 3 5 3/4 2 4 48
18-1/2-6 1/2 8-1/2 7/8 3 5 3/4 2 6 78
18-1/2-8 1/2 8-1/2 7/8 3 5 3/4 2 8 95
18-1/2-10 1/2 8-1/2 7/8 3 5 3/4 2 10 113
18-1/2-12 1/2 9-1/2 7/8 3 5 3/4 2 12 171
18-1-3* 1 8-1/2 7/8 3 5 3/4 2 3 40
18-1-4* 1 8-1/2 7/8 3 5 3/4 2 4 48
18-1-6 1 9-1/2 7/8 3 5 3/4 2 6 93
18-1-8 1 10-1/2 7/8 3 5 3/4 2 8 136
18-1-10 1 10-1/2 7/8 3 5 3/4 2 10 175
18-1-12 1 11-1/2 7/8 3 5 3/4 2 12 239
18-2-3* 2 9-1/2 7/8 3 5 3/4 2 3 52
18-2-4* 2 10-1/2 7/8 3 5 3/4 2 4 75
18-2-6 2 10-1/2 7/8 3 5 3/4 2 6 139
18-2-8 2 11-1/2 7/8 3 5 3/4 2 8 169
18-2-10 2 12-1/2 7/8 3 5 3/4 2 10 246
18-2-12 2 13-1/2 7/8 3 5 3/4 2 12 326
18-5-3* 5 13-1/2 2 4 7 1-1/4 2 3 104
18-5-4* 5 14-1/2 2 4 7 1-1/4 2 4 135
18-5-6 5 15-1/2 2 4 7 1-1/4 2 6 211
18-5-8 5 16-1/2 2 4 7 1-1/4 2 8 310
18-5-10 5 17-1/2 2 4 7 1-1/4 2 10 423
18-5-12 5 19-1/2 2 4 7 1-1/4 2 12 618
18-7 1/2-3* 7-1/2 12 2 4 7 1-1/4 2 3 125
18-7 1/2-4* 7-1/2 14 2 4 7 1-1/4 2 4 185
18-7 1/2-6 7-1/2 15 2 4 7 1-1/4 2 6 315
18-7 1/2-8 7-1/2 17 2 4 7 1-1/4 2 8 475
*3' and 4' beams are provided with one set of bent bar hooks.
