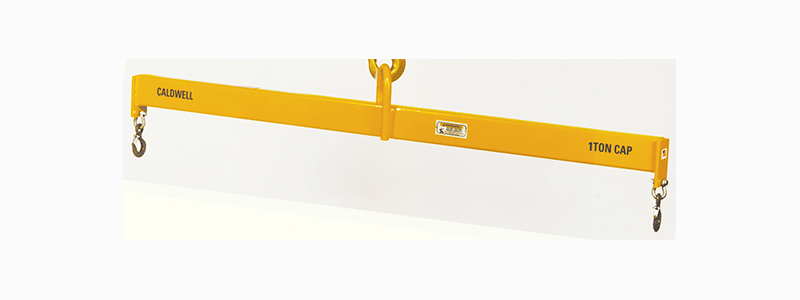

Product Features

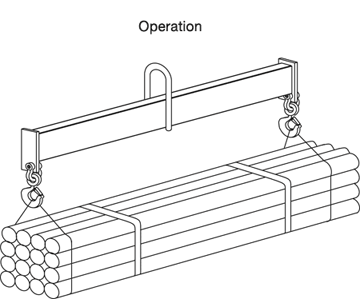

  • Provides clearance in low headroom applications.
  • Eye hooks with hook latches standard.
  • Fixed spread.
  • Complies with ASME standards.

Product Specifications


Model 19 Specifications
Model numbers shown in red are part of our QUICKSHIP program.

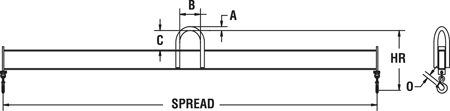

Model Number Capacity (tons) HR (in.) A (in.) B (in.) C (in.) O (in.) Spread (ft.) Weight (lbs.)
19-1/2-2 1/2 13-5/16 3/4 3 5 .89 2 20
19-1/2-3 1/2 13-5/16 3/4 3 5 .89 3 26
19-1/2-4 1/2 13-5/16 3/4 3 5 .89 4 33
19-1/2-6 1/2 13-5/16 3/4 3 5 .89 6 48
19-1/2-8 1/2 14-5/16 3/4 3 5 .89 8 75
19-1/2-10 1/2 14-5/16 3/4 3 5 .89 10 93
19-1-2 1 14-5/16 1 6 5 .89 2 26
19-1-3 1 14-5/16 1 6 5 .89 3 35
19-1-4 1 14-5/16 1 6 5 .89 4 44
19-1-6 1 15-5/16 1 3 5 .89 6 72
19-1-8 1 15-5/16 1 6 5 .89 8 93
19-1-10 1 16-5/16 1 6 5 .89 10 131
19-2-3 2 16-3/4 1 6 5 1 3 45
19-2-4 2 16-3/4 1 6 5 1 4 55
19-2-6 2 19-3/4 1 6 5 1 6 108
19-2-8 2 19-3/4 1 6 5 1 8 140
19-2-10 2 19-3/4 1 6 5 1 10 188
19-3-3 3 18 1-1/2 6 5 1 3 58
19-3-4 3 20 1-1/2 6 5 1 4 87
19-3-6 3 20 1-1/2 6 5 1 6 118
19-3-8 3 20 1-1/2 6 5 1 8 222
19-3-10 3 20 1-1/2 6 5 1 10 272
