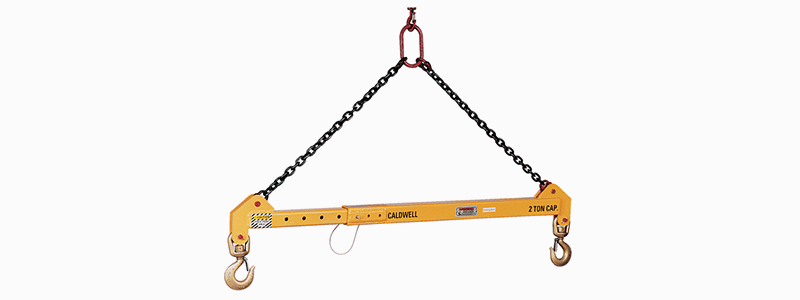

Product Features

  • Ideal where headroom is not limited.
  • Adds stability to lift.Telescopic spread standard.
  • Available with standard chain or wire rope rigging.
  • Available with Adjust-A-Leg® rigging for off center load adjustment (minimum lifting capacity will be approximately 10-15% of beam rating).
  • Wide range of additional sizes and capacities available.
  • Complies with ASME standards.

Top Rigging Options

  • OPTION C – Chain top rigging from beam to crane hook.
  • OPTION W – Wire rope top rigging from beam to crane hook.
  • OPTION A – Adjust-A-Leg® sling top rigging for off-center load adjustment (not included in QUICKSHIP Program).

Product Specifications

Model 32 Specifications
Model numbers shown in red are part of our QUICKSHIP program.
Model Number Capacity (tons) Max Spread (ft) Min Spread (ft) HR Min/Max w.chain rigging (in.) A (in.) B (in.) C (in.) F (in.) O (in.) Weight Beam & Hooks (lbs.) Chain Rigging Weight (lbs.)
32-2-4/6 2 6 4 57/48 1/2 2.36 3.94 5.5 0.97 70 9
32-2-6/10 2 10 6 88/72 1/2 2.36 3.94 5.5 0.97 85 13
32-2-8/14 2 14 8 113/96 1/2 2.36 3.94 5.5 0.97 175 17
32-2-12/20 2 20 12 166/132 1/2 2.36 3.94 5.5 0.97 245 23
32-5-4/6 5 6 4 64/55 1 3.94 7.09 8.4 1.41 105 34
32-5-6/10 5 10 6 95/79 1 3.94 7.09 8.4 1.41 160 47
32-5-8/14 5 14 8 126/102 1 3.94 7.09 8.4 1.41 205 61
32-5-12-20 5 20 12 172/138 1 3.94 7.09 8.4 1.41 670 82
32-10-4/6 10 6 4 69/60 1-1/4 5.51 10.63 10.6 1.78 95 49
32-10-6/10 10 10 6 111/74 1-1/4 5.51 10.63 10.6 1.78 175 69
32-10-8/14 10 14 8 132/108 1-1/4 5.51 10.63 10.6 1.78 460 88
32-10-12/20 10 20 12 163/144 1-1/4 5.51 10.63 10.6 1.78 680 118
32-15-4/6 15 6 4 72/64 1-1/2 5.25 10.5 13.6 2.22 165 78
32-15-6/10 15 10 6 104/87 1-1/2 5.25 10.5 13.6 2.22 365 111
32-15-8/14 15 14 8 135/111 1-1/2 5.25 10.5 13.6 2.22 478 145
32-15-12/20 15 20 12 180/147 1-1/2 5.25 10.5 13.6 2.22 700 194
