Product Features

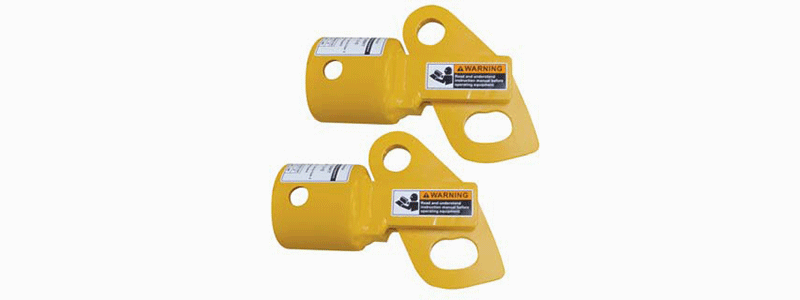

  • Build your own spreader beam.
  • Designed to work with a range of shackle sizes, both top and bottom.
  • Complies with ASME standards when assembled to specifications using designated pipe and rigging.

Product Specifications

Model No.
Spread (ft.) 		Capacity (tons) Weight (lbs.)
Per Pair
4 5 6 8 10 12 14 15 16 18 20 22 24 26 28 30 32 34 36
BEF-2-1/2 7.5 7 6.5 5.5 4 2.9 2 1.8 - - - - - - - - - - - 16
BEF-5 17 17 17 17 17 16 15 14 13 12 10 8 7 6 5 4.5 - - - 46
BEF-8 39 39 39 39 39 38 36 36 35 33 31 29 27 25 23 21 19 16 15 266
Model BEF Specification
Model numbers shown in green are part of our INSTOCK program.
Model Number Spread Min. - Max. (ft.) Capacity Min. - Max. (tons) Weight Per Pair (lbs.)
BEF-2-1/2 4 - 15 7.5 - 1.8 16
BEF-5 4 - 30 17 - 4.5 46
BEF-8 4 - 36 39 - 15 266
NOTE: Capacity based on minimum 45° top rigging angle. Other sizes available, consult factory.
