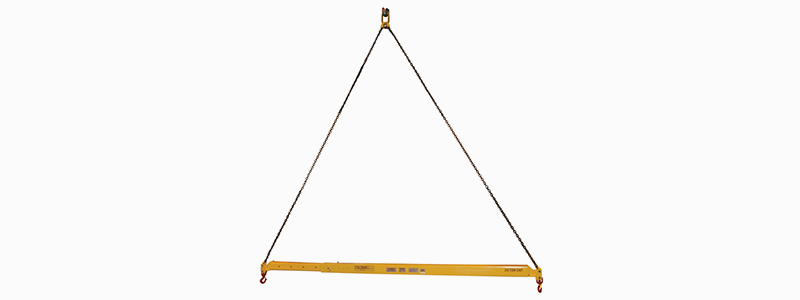

Product Features

  • Ideal where headroom is not limited.
  • Adds stability to lift.
  • Choose from a wide range of sizes and capacities.
  • Telescoping adjustment at 12 inch increments.
  • Select chain or wire rope top rigging.
  • Custom designs available.
  • Complies with ASME standards.

Product Specifications

Model 32 Specifications

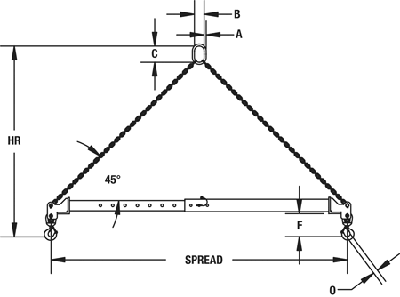

Model Number Capacity (tons) Max Spread (ft) Min Spread (ft) HR (in.) A (in.) B (in.) C (in.) F (in.) O (in.) Weight (lbs) Chain Rigging Weight (lbs)
32-20-7/11 20 11 7 107/93 1.75 6.0 12.0 14.2 2.27 430 175
32-20-9/15 20 15 9 144/123 1.75 6.0 12.0 14.2 2.27 540 225
32-20-12/20 20 20 12 180/151 1.75 6.0 12.0 14.2 2.27 822 275
32-25-7/11 25 11 7 107/98 2 7.0 14.0 14.2 2.27 430 240
32-25-9/15 25 15 9 141/119 2 7.0 14.0 14.2 2.27 540 295
32-25-12/20 25 20 12 179/149 2 7.0 14.0 41.2 2.27 825 365
32-30-7/11 30 11 7 115/102 2 7.0 14.0 18.3 3.02 615 240
32-30-9/15 30 15 9 145/124 2 7.0 14.0 18.3 3.02 750 295
32-30-12/20 30 20 12 183/154 2 7.0 14.0 18.3 3.02 1065 365
32-40-7/11 40 11 7 118/105 2.25 8.0 16.0 18.3 3.02 620 375
32-40-9/15 40 15 9 148/127 2.25 8.0 16.0 18.3 3.02 840 470
32-40-12/20 40 20 12 184/154 2.25 8.0 16.0 18.3 3.20 1500 565
