Product Features

  • Handle concrete pipe efficiently without damage to concrete seat.
  • Legs can be quickly positioned to safely balance the load.
  • 2 or 3 leg models available.
  • Handles 4″ – 6″ concrete wall thickness.
  • Requires constant tension to maintain positive load contact.
  • Complies with ASME standards.

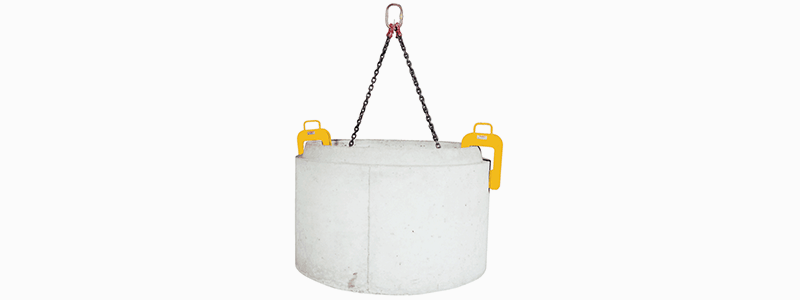

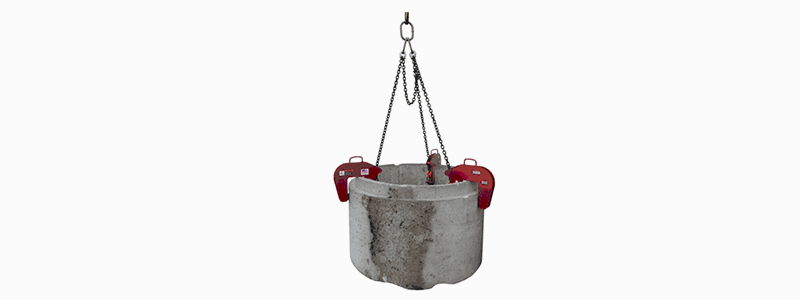

Concrete Housing Lifter

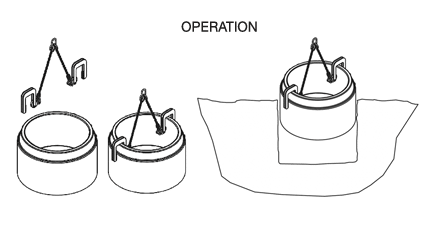

Shows operation of the Caldwell Concrete Housing Lifter

Product Specifications


Model MHL Specifications
Model numbers shown in green are part of our INSTOCK program.
Model Number Description Maximum Diameter (in.) Capacity (lbs.) Weight (lbs.)
MHL-5 2 - Leg Model 2 - 42" Legs 93.5 10000 131
MHL-7.1/2-72 3 - Leg Model 2 - 42" Legs 1 - 72" Leg with Chain Shortner 101 15000 181
MHL-C Clamp Only - 5000 45
NOTE: Reverse cam action eliminates slippage tendency. Consult factory for other housing configurations.
