Product Features

  • Quick and efficient way to place cast manhole sleeves.
  • Easily attaches to and releases from the load.
  • 2 or 3 leg models available.
  • Complies with ASME standards.

Manhole Sleeve Lifter

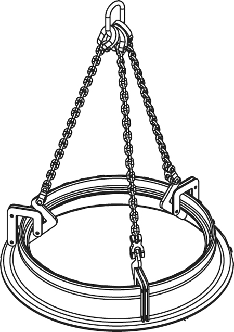

Shows operation of the Caldwell Manhole Sleeve Lifter

Product Specifications


Model MCL Specifications
Model numbers shown in green are part of our INSTOCK program.
Model Number Description Capacity (lbs.) Weight (lbs.)
MCL-1/2 2-Leg Version 1000 24
MCL-3/4 3-Leg: 2-18" Legs, 1-30" Leg with Shortener 1500 26
MCL-C Clamps Only 500 6

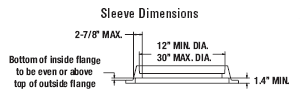

NOTE: Flange diameter range 12" - 30". Not for straight walled lifts.

Consult factory for other frame configurations.
