NEW – Pipe Tongs – Adjustable
NEW – LARGER SIZE AVAILABLE – 15-20″ DIAMETER RANGE

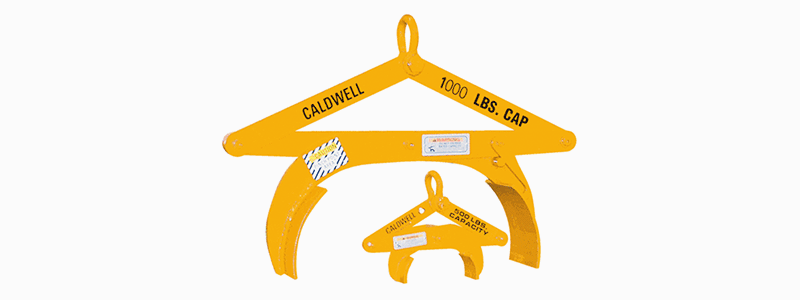

Model 108-1/2-2/4 (bottom) and Model 108-1-10/15 (top) shown.
Product Features
- Pipe Tongs are made of sturdy construction to handle pipe, round bars and cast pipe.
- Tongs are provided with steel curved gripping arms.
- Optional replaceable polyurethane pads available to protect smooth or polished surfaces.
- Load must be balanced and controlled when lifting.
- Use in pairs with a lifting/spreader beam for added stability.
- Complies with ASME standards.
Product Specifications
| Model PLT Adjustable Diameter Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model numbers shown in red are part of our QUICKSHIP program. Model numbers shown in green are part of our INSTOCK program. |
||||||||
| Model Number | Rated Capacity (lbs.) | Bare Steel Range Min. - Max. (in.) | Urethane Pad Range Min. - Max. (in.) | HR Min. - Max. (in.) | Pad Width (in.) | A (in.) | B (in.) | Weight (lbs.) |
| 108-1/2-2/4 | 1000 | 2 - 4 | 1.25 - 3.25 | 13.46 - 11.78 | 2.25 | 0.5 | 1.31 | 7 |
| 108-1-4/8 | 2000 | 4 - 8 | 3.25 - 7.25 | 21.06 - 18.70 | 5 | 0.5 | 1.31 | 18 |
| 108-1-7/12 | 2000 | 7 - 12 | 6.25 - 11.25 | 39.71 - 34.40 | 6 | 0.88 | 2.28 | 73 |
| 108-1-10/15 | 2000 | 10 - 15 | 9.25 - 14.25 | 37 - 33.63 | 6 | 0.75 | 2 | 50 |
| 108-1-15/20 - New Size | 2000 | 15 - 20 | 14.25 - 19.25 | 59.53 - 64.72 | 8 | .97 | 2.28 | 225 |
