“Tea Cup” Pipe Carrier
Light-weight and ecomonical solution for handling large precast concrete pipes.

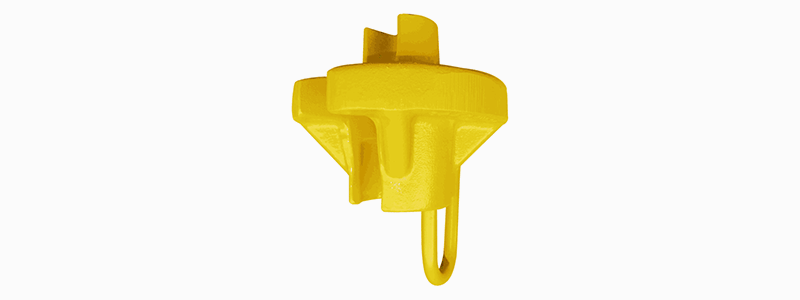

Model PC-1 "Tea Cup" Pipe Carrier shown.
Product Features
- An efficient way to handle concrete water and sewer pipes.
- The Caldwell “Tea Cup” Pipe Carrier will save you time and money.
- Three sizes available, to handle from 3/4” to 1-1/2” cable, and lift up to 18 tons.
- Optional “Spoon Handle” allows the PC-3/4 “Tea Cup” to be guided into small diameter pipes.
- Complies with ASME standards.
Product Specifications

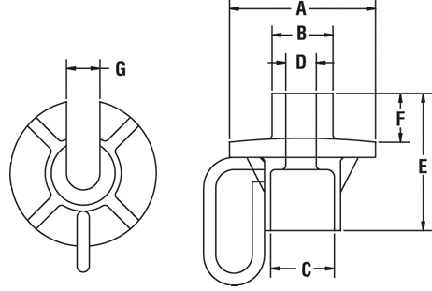

| Model PC Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model numbers shown in green are part of our INSTOCK program. | |||||||||
| Model Number | Rated Capacity (tons) | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | F (in.) | G (in.) | Weight (lbs.) |
| PC-3/4* | 6.6 | 5.56 | 2 | 2.13 | 1.13 | 4.75 | 1.75 | 1.13 | 9 |
| PC-1 | 13 | 6 | 2.50 | 2.63 | 1.38 | 5.75 | 1.75 | 1.38 | 12 |
| PC-1 1/2 | 18 | 8 | 3 | 3.25 | 1.63 | 7.63 | 2.75 | 1.63 | 22 |
|
* Can use "Spoon Handle" with this model.
|
|||||||||
