“Tea Cup” Lifting Sling

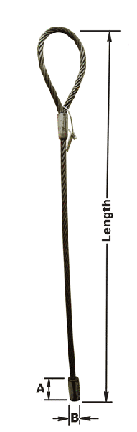

Model LS-3/4 Lifting Sling shown.
Product Features
- Optional Tea Cup lifting sling for use with PC-3/4, 1 and 1-1/2.
Product Specifications
| Model LS Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Model numbers shown in green are part of our INSTOCK program. | |||||||
| Model Number | Use With Model | Rated Capacity (tons) | Sling Dia. (in.) | Standard Length (ft.) | A (in.) | B (in.) | Weight (lbs.) |
| LS-3/4 | PC-3/4 | 4.9 | 3/4 | 5 | 3.25 | 1.55 | 9 |
| LS-7/8 | PC-3/4 | 6.6 | 7/8 | 5 | 3.86 | 1.80 | 14 |
| LS-1 | PC-1 | 8.5 | 1 | 5 | 4.36 | 2.05 | 19 |
| LS-1 1/8 | PC-1 | 10 | 1-1/8 | 5 | 4.81 | 2.30 | 26 |
| LS-1 1/4 | PC-1 | 13 | 1-1/4 | 5 | 5.42 | 2.56 | 33 |
| LS-1 1/2 | PC-1 1/2 | 18 | 1-1/2 | 5 | 6.52 | 3.00 | 52 |
|
NOTE: INSTOCK on standard 5' length only.
|
|||||||
