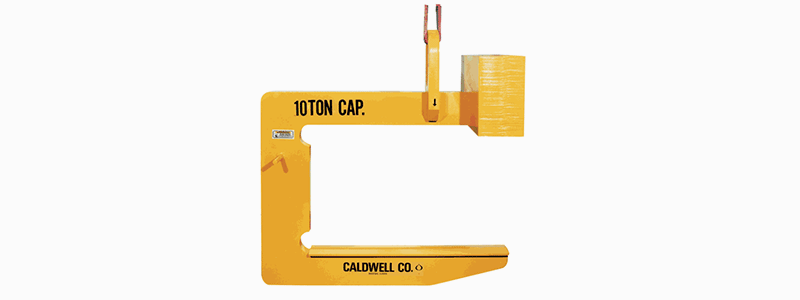

Product Features

  • Recessed counterweight allows for close stacking of coils which
    maximizes floor space.
  • Handles a wide range of coil widths.
  • Designed for heavy duty application.
  • High tensile alloy steel plate reduces physical size and weight.
  • Counter balanced to hang level when empty.
  • Inside radius on hooks avoid coil edge contact.
  • Curved coil saddle is standard.
  • Guide handle for ease of hook positioning.
  • Available with optional padding for additional coil protection.
  • Complies with ASME standards.

Product Specifications



Model 82RC Specifications
Model numbers shown in red are part of our QUICKSHIP program.

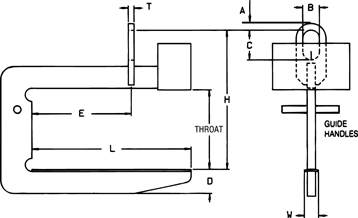

Model Number Capacity (tons) Max Width (in.) Min Width (in.) Throat (in.) L (in.) D (in.) W (in.) HR (in.) A (in.) B (in.) C (in.) T (in.) Weight (lbs)
82RC-5-36 5 36 24 24 30 5-5/16 4 37-1/4 1-1/2 4 7 1-1/4 550
82RC-5-48 5 48 30 24 39 6-1/8 4 38-1/16 1-1/2 4 7 1-1/4 707
82RC-5-60 5 60 36 24 48 6-15/16 4 38-15/16 1-1/2 4 7 1-1/4 853
82RC-7 1/2-36 7-1/2 36 24 24 30 5-5/8 4 37-1/2 1-1/2 4 7 1-1/2 750
82RC-7 1/2-48 7-1/2 48 30 24 39 6-3/8 4 38-1/4 1-1/2 4 7 1-1/2 996
82RC-7 1/2-60 7-1/2 60 36 24 48 6-15/16 4 39 1-1/2 4 7 1-1/2 1161
82RC-10-48 10 48 30 24 39 7-3/16 4 41-1/4 2 5 9 1-3/4 1200
82RC-10-60 10 60 36 24 48 7-5/8 4 41-1/2 2 5 9 1-3/4 1645
82RC-10-72 10 72 42 24 57 7-1/4 4 41-1/8 2 5 9 1-3/4 2100
82RC-15-48 15 48 30 30 39 7-1/4 4 47-7/8 2 5 9 1-3/4 2054
82RC-15-60 15 60 36 30 48 8 4 48 2-1/4 5 9 1-3/4 2410
82RC-15-72 15 72 42 30 57 8-3/4 4 48-3/4 2 5 9 1-3/4 2814
82RC-20-60 20 60 36 30 48 9-1/8 4 52-1/8 2-1/4 6 12 2 2864
82RC-20-72 20 72 42 30 57 9-3/4 4 52-1/2 2-1/4 6 12 2 2951
82RC-25-60* 25 60 36 34 48 9 4 57-3/4 2-1/2 6 14 2-1/4 3077
82RC-25-72* 25 72 42 34 57 9-3/4 4 58-3/4 2-1/2 6 14 2-1/4 3570
82RC-30-60* 30 60 36 34 48 9-7/8 4 58-3/4 2-3/4 6 14 2-1/2 3480
82RC-30-72 30 72 42 34 57 10-5/8 4 59-3/8 2-3/4 6 14 2-1/2 4260
82RC-40-72* 40 72 42 38 57 11 5 68 3-1/4 7 18 3 6100
* Counterweight extends beyond arm one-half of the counterweight width, in capacities 25 ton and greater.
Other sizes available, consult factory
