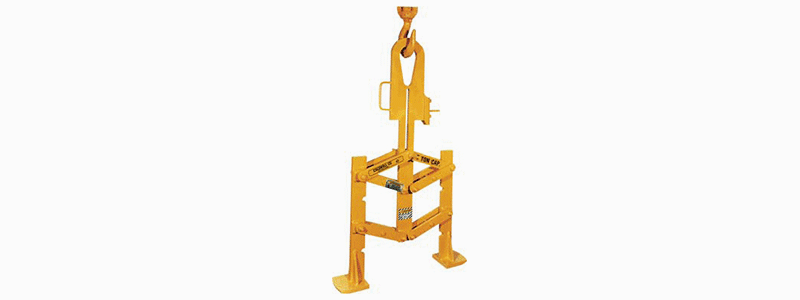

Ext. Width Vertical Coil Lifter
Product Features
- Handles any size coil I.D. from 16″ to 24″.
- Lifter legs automatically adjust to coil I.D.
being lifted. - Has higher capacity range than standard lifter.
- Unique design minimizes dunnage required
between coils. - Complies with ASME standards.
Model 83EW Operation Video
A quick presentaion on how the model 83EW operates.

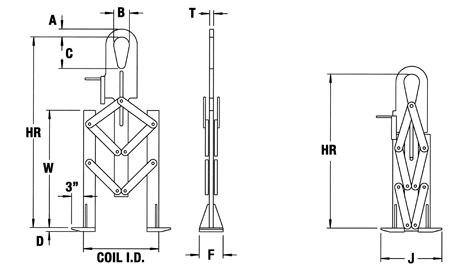

Product Specifications
| Model 83EW Specification | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model numbers shown in red are part of our QUICKSHIP program. | ||||||||||||||
| Model Number | Capacity (tons) | Min Coil ID (in.) | Max Coil ID (in.) | W (in.) | HR Open (in.) | HR Closed (in.) | A (in.) | B (in.) | C (in.) | T (in.) | F (in.) | D (in.) | J (in.) | Weight (lbs) |
| 83EW-1/2-24 | 1/2 | 16 | 24 | 20 | 36 | 30-7/8 | 1-/14 | 3 | 5 | 5/8 | 5 | 1/2 | 14-1/2 | 90 |
| 83EW-2 1/2-24 | 2-1/2 | 16 | 24 | 24 | 44 | 37-1/2 | 1-1/2 | 3 | 5 | 3/4 | 5 | 3/4 | 15-1/2 | 125 |
| 83EW-5-24 | 5 | 16 | 24 | 30 | 47 | 40-3/8 | 2 | 4 | 7 | 1 | 6 | 1 | 15-1/2 | 170 |
| 83EW-7 1/2-24 | 7-1/2 | 16 | 24 | 30 | 47 | 40-3/8 | 2 | 4 | 8 | 1 | 6 | 1 | 15-1/2 | 170 |
|
Other sizes available, consult factory.
|
||||||||||||||
