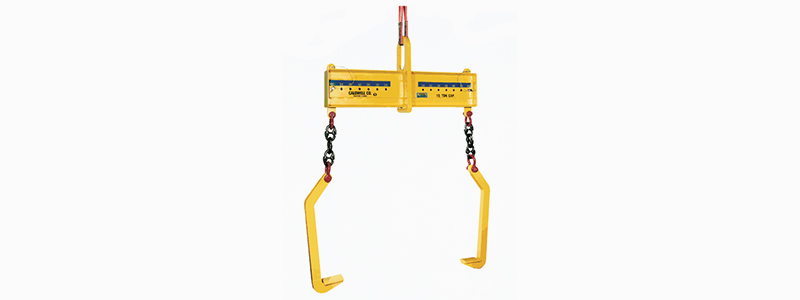

Product Features

  • Most economical of the two-sided coil lifters.
  • Two-sided coil lifter requires less aisle space.
  • Lifting hook width adjustment pin is easy to use.
  • Hooks manufactured from high tensile alloy steel.
  • Coil width adjustment indicators for easy
    hook placement.
  • Optional coil protection available.
  • Complies with ASME standards.

Product Specifications

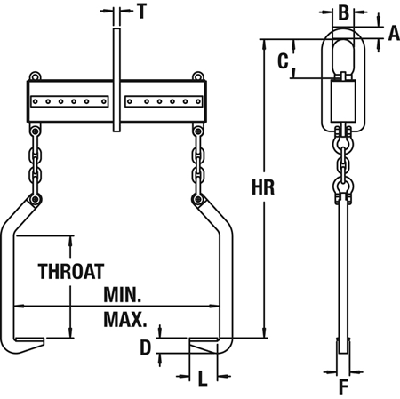

Model 86 Specifications
Model Number Capacity (tons) Min Coil Width (in.) Max Coil Width (in.) Throat (in.) HR (in.) A (in.) B (in.) C (in.) T (in.) D (in.) F (in.) L (in.) Weight (lbs)
86-10-48 10 20 48 24 58 2 4 7 1-1/4 3-1/4 4 7 210
86-15-48 15 20 48 28 66 2-1/2 5 9 1-1/2 3-1/2 4 7 352
86-20-60 20 24 60 30 82 2-1/2 5 9 1-1/2 3-5/16 4 6 760
86-25-60 25 24 60 32 94 2-3/4 6 12 2-1/4 4-3/4 4 8 1235
86-30-72 30 24 72 26 83 3-1/2 7 16 2-1/4 4-3/4 4 8 1170
Other sizes available, consult factory.
