Product Features

  • Designed for heavy duty applications.
  • Handles multiple slit coils which maximizes handling efficiency.
  • Recessed counterweight minimizes interference with equipment or
    other obstacles.
  • High tensile alloy steel plate reduces physical size and weight.
  • Counter balanced to hang level when empty.
  • Inside radius on hooks avoid coil edge contact.
  • Curved coil saddle is standard.
  • Guide handles for ease of hook positioning.
  • Available with optional padding for additional coil protection.
  • Complies with ASME standards.

Product Specifications

Model 82LA Specifications
Model numbers shown in red are part of our QUICKSHIP program.

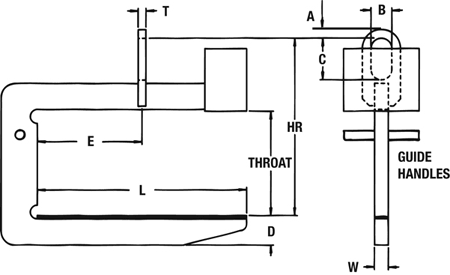

Model Number Capacity (tons) Coil Width Max (in.) Throat (in.) L (in.) D (in.) W (in.) HR (in.) A (in.) B (in.) C (in.) T (in.) Weight (lbs)
82LA-5-36 5 36 24 36 5-5/16 4 37-1/4 1-1/2 4 7 1-1/4 450
82LA-5-48 5 48 24 48 6-1/8 4 38 1-1/2 4 7 1-1/4 555
82LA-5-60 5 60 24 60 6-9/16 4 38-9/16 1-1/2 4 7 1-1/4 649
82LA-7 1/2-36 7-1/2 36 24 36 5-5/8 4 37-5/8 1-1/2 4 7 1-1/2 496
82LA- 7 1/2-48 7-1/2 48 24 48 6-5/16 4 38-5/16 1-1/2 4 7 1-1/2 731
82LA-7 1/2-60 7-1/2 60 24 60 7-1/8 4 38-7/8 1-1/2 4 7 1-1/2 898
82LA-10-48 10 48 24 48 7-3/16 4 41-1/8 2 5 9 1-3/4 932
82LA-10-60 10 60 24 60 7-5/16 4 41-1/8 2 5 9 1-3/4 1281
82LA-10-72 10 72 24 72 7-1/4 4 41-1/8 2 5 9 1-3/4 1570
82LA-15-48 15 48 30 48 7-1/4 4 47-7/8 2 5 9 1-3/4 1510
82LA-15-60 15 60 30 60 8 4 48 2 5 9 1-3/4 1789
82LA-15-72 15 72 30 72 8-7/8 4 48-3/4 2 5 9 1-3/4 2120
82LA-20-60 20 60 30 60 9-1/8 4 52-1/8 2-3/4 6 12 2 2125
82LA-20-72 20 72 30 72 9-15/16 4 52-15/16 2-3/4 6 12 2 2485
82LA-25-60 25 60 34 60 9-1/8 4 57-3/4 3-1/4 6 14 2-1/2 2840
82LA-25-72 25 72 34 72 9-3/4 4 58-1/2 3-3/4 6 14 2-1/2 3350
Other sizes available, consult factory.
