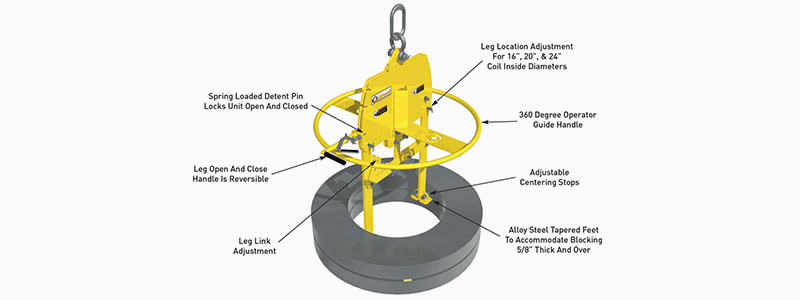

Product Features and Benefits

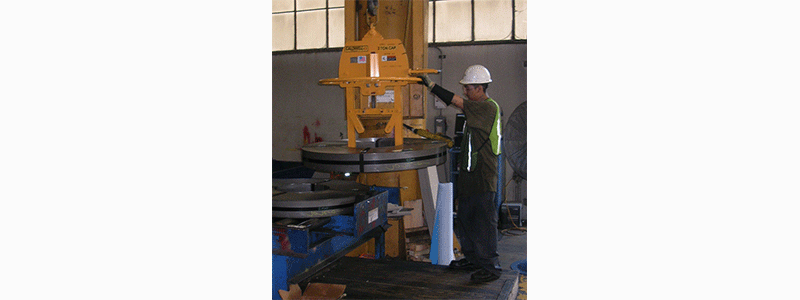

  • Efficient handling of vertically stacked coils.
  • Handles coils with ID’s of 16”, 20”, and 24”.
  • Ergonomic handles and guide.
  • Horizontal handle with pin lever is easy to actuate.
  • Spring loaded lever can be set for right- or left-handed operation.
  • Unique 360º guide handle is easily accessed from any location.
  • Optimized foot accommodates 5/8” blocking.
  • Complies with ASME standards.

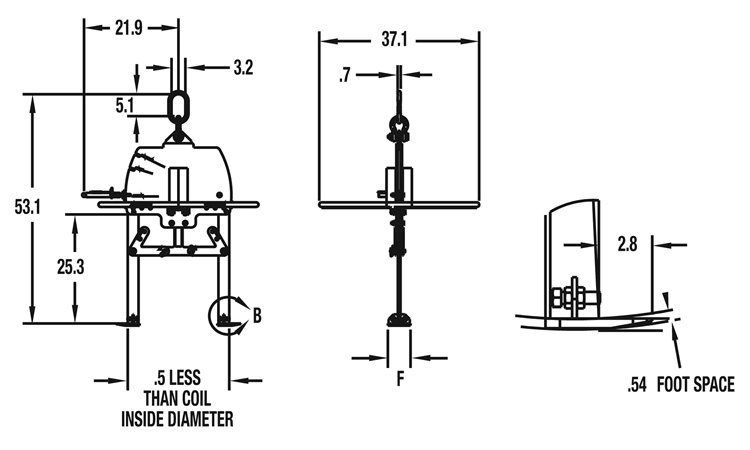

Product Specifications


Model 83E Specifications
Model numbers shown in red are part of our QUICKSHIP program.
Model Number Rated Capacity (tons) F (in.) Weight (lbs.)
83E-3-16/20/24 3 5.3 160
83E-5-16/20/24 5 8 165
