Designed to efficiently handle standard chlorine gas cylinders. Standard size determined by the Chlorine Institute is 80-3/4” to 82-1/4” in length. Special low headroom modification is available.

Standard Model 28 Chlorine Cylinder Lifting Beam.

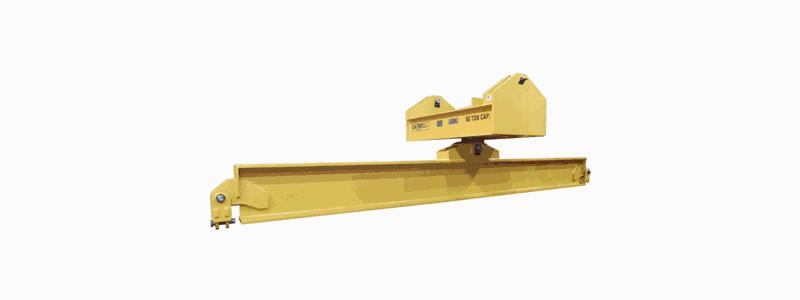

A specially designed lifting and rotating beam using two cranes or two hoists to horizontally rotate a load. A position locking pin holds the load rotation at a designated position. Available with motorized rotation.

Model 21M-55-77.5 shown.

Model 21, shown rotated, indicating some product features.

This low headroom lifting beam handles large loads using multiple pick points. Each unit is custom designed for your specific application. Complies with ASME standards.

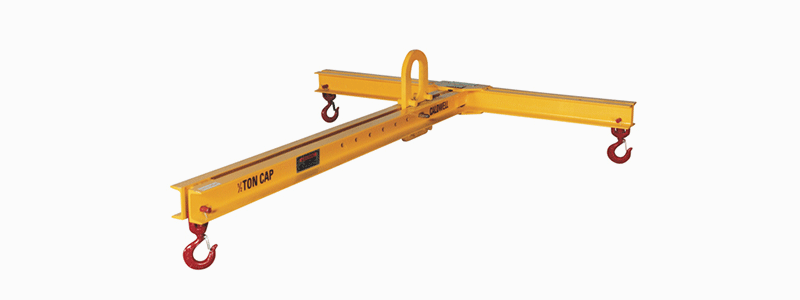

1/2 ton Model 27T with Option B, Adjustable Bail.

Model 27T-20-52/47.6 Three Point Lifting Beam, 20 ton capacity shown.

This low headroom lifting beam handles large loads using multiple pick points. Each unit is custom designed for your specific application. Complies with ASME standards.

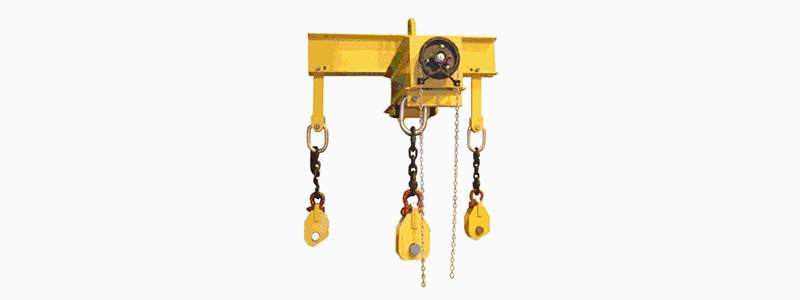

10 ton Model 27F designed with very low headroom to accommodate clearance issue for user.

Model 27F-40-48/60 Four Point Beam, 40 ton capacity shown.

Model 27F-100-12/8 Four Point Beam, 100 ton capacity shown.

Model 27F-7103/60 Four Point Beam shown with rig release lifters.

Model 27F - 4 Ton 4 point lifing Beam shown.

These standard configurations cover a wide range of requirement for many multi-point lifting applications.

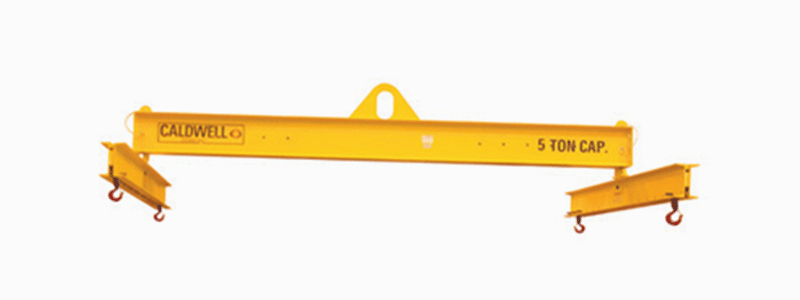

Model 27SD Standard Adjustable Four Point Lifting Beam.

Designed specifically for handling bulk containers with nylon loops in each corner.

Model 27SL Bulk Container Lifting Beam.

Model 27SL shown lifting a bulk container.

The Posi-Leveler™ allows for motorized adjustment of the beams central lifting point during the lift to always maintain a balanced load. This feature can be used for fine adjustment of the center of gravity during the lift. Leveling uneven loads during the lift saves rigging time and promotes a safer work environment.

Model 26P Posi-Leveler™ Motorized Load Leveler shown with special hooks.

Special 4-point Posi-Leveler™ with load guides.

Model 26P shown prior to leveling.

Model 26P after load is leveled.

Model 26P-3-4 Posi-Leveler™ Motorized Load Leveler, 3 ton capacity shown.

Use chain wheel to adjust lifting bail to be positioned over the load center of gravity before lifting the load.

Model 26 Adjustable Bail Lifting Beam.

Adjust lifting bail to be positioned over the load center gravity before lifting the load.

Model 24 Adjustable Bail Lifting Beam.

Model 24S-10-8 Adjustable Bail Lifitng Beam, 10 ton capacity shown.

Model 24S-70-25 Adjustable Bail Lifting Beam, 70 ton capacity shown.

Designed to connect two seperate cranes to create lifing point(s) between the two seperate cranes.

Model 25 Twin Hoist Lifting Beam.

Model 25 - Option A.

Model 25 - Option B.

Model 25 - Option C.

Model 25S-125-28 Twin Hoist Lifting Beam, 125 ton capacity shown.

Model 25S-10-35 Twin Hoist Beam, 10 ton capacity shown.
