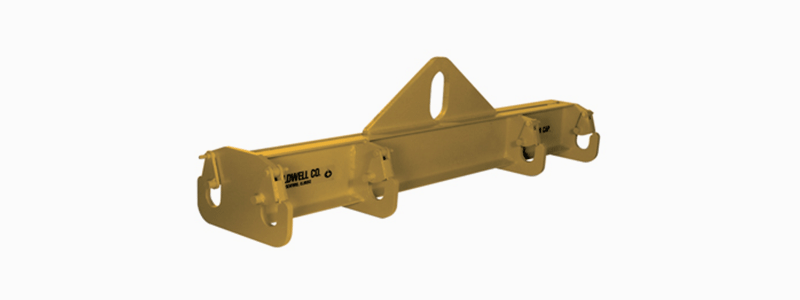

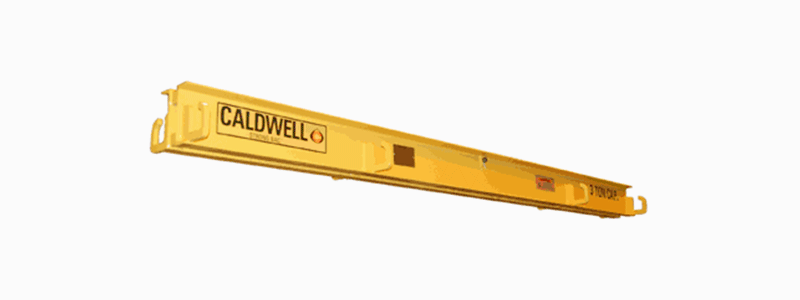

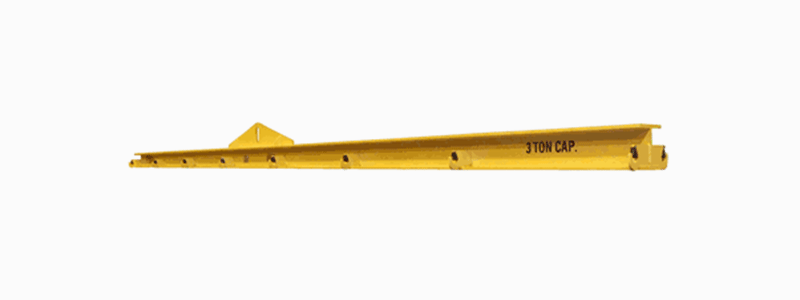

Product Features

  • Designed to be used with slings in a basket hitch.
  • Specially designed hooks with hook latches minimize potential sling damage.
  • Two sets of fixed hooks are standard in all lengths over 4’.
  • The inner set of hooks (S2) are 1/2 the overall spread.
  • Extra spreads available upon request.
  • Complies with ASME standards.

Product Options

  • Additional or different placement of lifting hooks.
  • Lifting Slings.
  • Model 22G – For lifting sheets or packages of glass. (Specilized Lifting Slings will be required.)

Product Specifications


Model 22 Specifications
Model numbers shown in red are part of our QUICKSHIP program.
Model Number Capacity (tons) Spread (ft) A (in.) B (in.) C (in.) T (in.) O (in.) HR (in.) Weight (lbs.)
22-1/2-3 1/2 3 7/8 3 5 3/4 1-1/16 8-1/2 50
22-1/2-4 1/2 4 7/8 3 5 3/4 1-1/16 8-1/2 65
22-1/2-6 1/2 6 7/8 3 5 3/4 1-1/16 8-1/2 110
22-1/2-8 1/2 8 7/8 3 5 3/4 1-1/16 8-1/2 150
22-1/2-10 1/2 10 7/8 3 5 3/4 1-1/6 9-1/2 200
22-1/2-12 1/2 12 7/8 3 5 3/4 1-1/16 9-1/2 220
22-1/2-14 1/2 14 7/8 3 5 3/4 1-1/16 10-1/2 298
22-1/2-16 1/2 16 7/8 3 5 3/4 1-1/16 10-1/2 331
22-1/2-18 1/2 18 7/8 3 5 3/4 1-1/16 11-1/2 424
22-1/2-20 1/2 20 7/8 3 5 3/4 1-1/16 11-1/2 463
22-1/2-24 1/2 24 7/8 3 5 3/4 1-1/16 12-1/2 627
22-1/2-30 1/2 30 7/8 3 5 3/4 1-1/16 13-1/2 855
22-1-3 1 3 7/8 3 5 3/4 1-1/8 8-1/2 50
22-1-4 1 4 7/8 3 5 3/4 1-1/8 8-1/2 65
22-1-6 1 6 7/8 3 5 3/4 1-1/8 9-1/2 145
22-1-8 1 8 7/8 3 5 3/4 1-1/8 10-1/2 210
22-1-10 1 10 7/8 3 5 3/4 1-1/8 10-1/2 230
22-1-12 1 12 7/8 3 5 3/4 1-1/8 11-1/2 290
22-1-14 1 14 7/8 3 5 3/4 1-1/8 11-1/2 338
22-1-16 1 16 7/8 3 5 3/4 1-1/8 12-1/2 390
22-1-18 1 18 7/8 3 5 3/4 1-1/8 13-1/2 539
22-1-20 1 20 7/8 3 5 3/4 1-1/8 13-1/2 588
22-1-24 1 24 7/8 3 5 3/4 1-1/8 15-1/2 907
22-1-30 1 30 7/8 3 5 3/4 1-1/8 15-1/2 1150
22-2-3 2 2 7/8 3 5 3/4 1-1/8 9-1/2 70
22-2-4 2 4 7/8 3 5 3/4 1-1/8 10-1/2 90
22-2-6 2 6 7/8 3 5 3/4 1-1/8 10-1/2 160
22-2-8 2 8 7/8 3 5 3/4 1-1/8 11-1/2 225
22-2-10 2 10 7/8 3 5 3/4 1-1/8 12-1/2 300
22-2-12 2 12 7/8 3 5 3/4 1-1/8 13-/12 375
22-2-14 2 14 7/8 3 5 3/4 1-1/8 13-1/2 447
22-2-16 2 16 7/8 3 5 3/4 1-1/8 14-1/2 515
22-2-18 2 18 7/8 3 5 3/4 1-1/8 15-1/2 725
22-2-20 2 20 7/8 3 5 3/4 1-1/8 15-1/2 815
22-2-24 2 245 7/8 3 5 3/4 1-1/8 17-1/2 1221
22-2-30 2 30 7/8 3 5 3/4 1-1/8 20-1/2 2272
22-5-3 5 3 2 4 7 1 1-1/4 13-1/2 90
22-5-4 5 4 2 4 7 1 1 14-1/2 160
22-5-6 5 6 2 4 7 1 1-1/8 15-1/2 275
22-5-8 5 8 2 4 7 1 1-1/8 16-1/2 350
22-5-10 5 10 2 4 7 1 1-1/8 16-1/2 450
22-5-12 5 12 2 4 7 1 1-1/8 16-1/2 500
22-5-14 5 14 2 4 7 1-1/4 1-1/8 19 854
22-5-16 5 16 2 4 7 1-1/4 1-1/8 22-1/2 940
22-5-18 5 18 2 4 7 1-1/4 1-1/8 22-1/2 1398
22-5-20 5 20 2 4 7 1-1/4 1-1/8 22-1/2 1650
22-5-24 5 24 2 4 7 1-1/4 1-1/8 22-1/2 2144
22-5-30 5 30 2 4 7 1-1/4 1-1/8 25-1/2 2330
22-7 1/2-3 7-1/2 3 2 4 7 1-1/4 1-3/4 14-1/2 155
22-7 1/2-4 7-1/2 4 2 4 7 1-1/4 1-3/4 15-1/2 180
22-7 1/2-6 7-1/2 6 2 4 7 1-1/4 1-3/4 16-1/2 330
22-7 1/2-8 7-1/2 8 2 4 7 1-1/4 1-3/4 17-1/2 410
22-7 1/2-10 7-1/2 10 2 4 7 1-1/4 1-3/4 17-1/2 500
22-7 1/2-12 7-1/2 12 2 4 7 1-1/4 1-3/4 16-1/2 700
22-7 1/2-14 7-1/2 14 2 4 7 1-1/4 1-3/4 22-1/2 1162
22-7 1/2-16 7-1/2 16 2 4 7 1-1/4 1-3/4 22-1/2 1300
22-7 1/2-18 7-1/2 18 2 4 7 1-1/4 1-3/4 22-1/2 1468
22-7 1/2-20 7-1/2 20 2 4 7 1-1/4 1-3/4 22-1/2 1606
22-7 1/2-24 7-1/2 24 2 4 7 1-1/4 1-3/4 25-1/2 2354
22-7 1/2-30 7-1/2 30 2 4 7 1-1/4 1-3/4 25-1/2 2330
22-10-3 10 3 2 4 7 1-1/4 1-3/4 15-1/2 150
22-10-4 10 4 2 4 7 1-1/4 1-3/4 16-1/2 200
22-10-6 10 6 2 4 7 1-1/4 1-3/4 17-1/2 320
22-10-8 10 8 2 4 7 1-1/4 1-3/4 19-1/2 500
22-10-10 10 10 2 4 7 1-1/4 1-3/4 22-1/2 850
22-10-12 10 12 2 4 7 1-1/4 1-3/4 19-1/2 1000
22-10-14 10 14 2 4 7 1-1/4 1-3/4 22-1/2 1147
22-10-16 10 16 2 4 7 1-1/4 1-3/4 22-1/2 1299
22-10-18 10 18 2 4 7 1-1/4 1-3/4 25-1/2 1741
22-10-20 10 20 2 4 7 1-1/4 1-3/4 25-1/2 1943
22-10-24 10 24 2 4 7 1-1/4 1-3/4 25-1/2 2335
22-10-30 10 30 2 4 7 1-1/4 1-3/4 25-1/2 2962
22-15-3 15 3 2-1/2 5 9 1-1/2 4 18-1/2 397
22-15-4 15 4 2-1/2 5 9 1-1/2 4 19-1/2 471
22-15-6 15 6 2-1/2 5 9 1-1/2 4 21-1/2 970
22-15-8 15 8 2-1/2 5 9 1-1/2 4 21-1/2 1240
22-15-10 15 10 2-1/2 5 9 1-1/2 4 24-1/2 1256
22-15-12 15 12 2-1/2 5 9 1-1/2 4 27-1/2 1980
22-15-14 15 14 2-1/2 5 9 1-1/2 4 27-1/2 2065
22-15-16 15 16 2-1/2 5 9 1-1/2 4 27-1/2 2100
22-15-18 15 18 2-1/2 5 9 1-1/2 4 27-1/2 2391
22-15-20 15 20 2-1/2 5 9 1-1/2 4 27-1/2 2582
22-15-24 15 24 2-1/2 5 9 1-1/2 4 72-1/2 4045
22-15-30 15 30 2-1/2 5 9 1-1/2 4 30 4100
22-20-3 20 3 2-1/2 5 9 1-1/2 4 19-1/2 253
22-20-4 20 4 2-1/2 5 8 1-1/2 4 21-1/2 328
22-20-6 20 6 2-1/2 5 9 1-1/2 4 21-1/2 910
22-20-8 20 8 2-1/2 5 9 1-1/2 4 24-1/2 1000
22-20-10 20 10 2-1/2 5 9 1-1/2 4 24-1/2 1150
22-20-12 20 12 2-1/2 5 9 1-1/2 4 24-1/2 1740
22-20-14 20 14 2-1/2 5 9 1-1/2 4 27-1/2 1935
22-20-16 20 16 2-1/2 5 9 1-1/2 4 27-1/2 2210
22-20-18 20 18 2-1/2 5 9 1-1/2 4 27-1/2 2480
22-20-20 20 20 2-1/2 5 9 1-1/2 4 27-1/2 2755
22-20-24 20 24 2-1/2 5 9 1-1/2 4 31 3500
22-20-30 20 30 2-1/2 5 9 1-1/2 4 31 4500
