NEW – Shackle Style Triangle Beams
Caldwell Triangle Beams provide a low headroom solution when a short span is all you need to make the connections between the load and the crane. Caldwell Triangle Beams are available in standard capacities from 13 to 149 tons and comply with ASME standards.
NEW - Shackle Style Triangle Beams.
Product Features
- Low Headroom
- Designed to ASME standards
Available Options
- Custom Capacities
- Extra Spreads
- Full Capacity Center Lift Points
- Built-In Stand
- Oblong with Top Shackle
- Longer Spreads
- Shorter Spreads
- Various Rigging Options

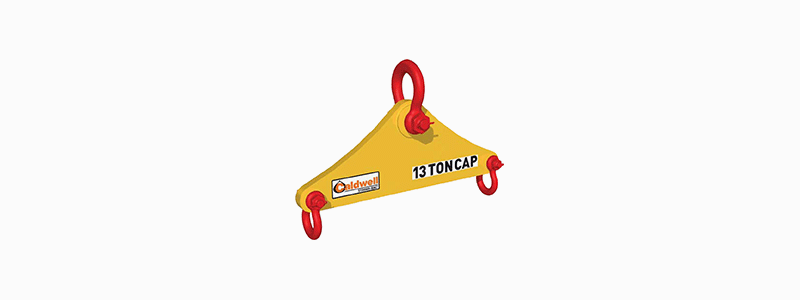

New Product – Triangle Beam
A low headroom, short span solutions connect the load and the crane to get the job done.

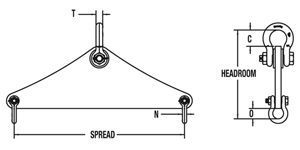

Product Specifications
| Model 20TS - Shackle Style Specifactions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | Rated Capacity (tons) | Spread (ft.) | HR (in.) | T (in.) | C (in.) | N (in.) | O (in.) | Weight (lbs) | ||
| 20TS-13-2 | 13 | 2 | 17 | 1.38 | 3.44 | 0.88 | 2.19 | 85 | ||
| 20TS-13-3 | 13 | 3 | 18.8 | 1.38 | 3.44 | 0.88 | 2.19 | 127 | ||
| 20TS-24-2 | 24 | 2 | 21.5 | 1.75 | 4.56 | 1.25 | 3.25 | 169 | ||
| 20TS-24-3 | 24 | 3 | 23.5 | 1.75 | 4.56 | 1.25 | 3.25 | 238 | ||
| 20TS-34-2 | 34 | 2 | 24.4 | 2 | 4.75 | 1.5 | 4.19 | 245 | ||
| 20TS-34-3 | 34 | 3 | 26.7 | 2 | 4.75 | 1.5 | 4.19 | 335 | ||
| 20TS-50-2 | 50 | 2 | 29.3 | 2.5 | 7.06 | 1.75 | 4.94 | 395 | ||
| 20TS-50-3 | 50 | 3 | 31.8 | 2.5 | 7.06 | 1.75 | 4.94 | 520 | ||
| 20TS-70-2 | 70 | 2 | 33.4 | 3 | 8.87 | 2 | 5.12 | 590 | ||
| 20TS-70-3 | 70 | 3 | 36 | 3 | 8.87 | 2 | 5.12 | 745 | ||
| 20TS-110-2 | 110 | 2 | 39.9 | 3.5 | 9.31 | 2.5 | 7.62 | 950 | ||
| 20TS-110-3 | 110 | 3 | 42.9 | 3.5 | 9.31 | 2.5 | 7.62 | 1175 | ||
| 20TS-149-2 | 149 | 2 | 42.8 | 4 | 8.81 | 3 | 9.87 | 1300 | ||
| 20TS-149-3 | 149 | 3 | 46.05 | 4 | 8.81 | 3 | 9.87 | 1600 | ||
