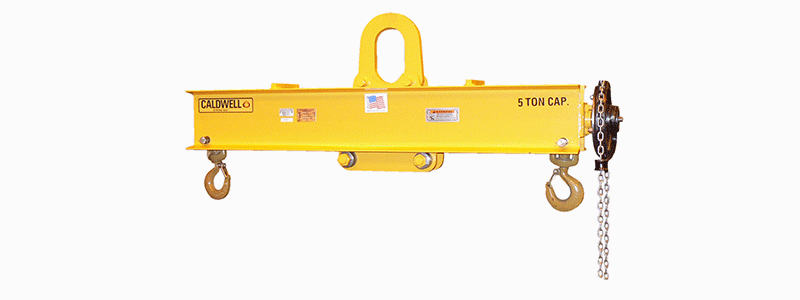

Product Features

  • Handles off center loads by adjusting the bail before a lift.
  • Infinite adjustment of bail within range.
  • Swivel hooks with hook latches standard.
  • Wide range of sizes and capacities available.
  • Complies with ASME standards.

Product Options

  • OPTION A – EXTRA HOLES – Allows for multiple hook positioning. Specify number and spread(s) required. *Could increase headroom.
  • OPTION B – FASPINS – For ease of positioning hooks with quick release. Specify numberof faspins required.
  • OPTION C – EXTRA HOOKS – Allows for multiple pick points. Specify number of hooks required.
  • MOTORIZED ADJUSTMENT – Please see our Posi-Leveler™.

Product Specifications

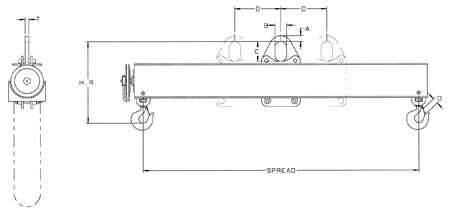

Model 26 Specifications
Model Number Capacity (tons) Spread (ft) D (in.) A (in.) B (in.) C (in.) T (in.) O (in.) HR (in.) Weight (lbs.)
26-2-4 2 4 8 1-1/2 3 5 5/8 1 15-1/8 135
26-2-6 2 6 12 1-1/2 3 5 5/8 1 15-1/8 185
26-2-8 2 8 16 1-1/2 3 5 5/8 1 16- 1/8 260
26-2-10 2 10 20 1-1/2 3 5 5/8 1 17-1/8 329
26-2-12 2 12 24 1-1/2 3 5 5/8 1 17-1/8 377
26-2-14 2 14 28 1-1/2 3 5 5/8 1 18-1/8 481
26-2-16 2 16 32 1-1/2 3 5 5/8 1 18-1/8 538
26-2-18 2 18 36 1-1/2 3 5 5/8 1 19-1/8 680
26-2-20 2 20 40 1-1/2 3 5 5/8 1 19-1/8 750
26-2-24 2 24 48 1-1/2 3 5 5/8 1 20-1/8 1265
26-5-4 5 4 8 2 4 7 1 1 21-1/2 170
26-5-6 5 6 12 2 4 7 1 1 21-1/2 270
26-5-8 5 8 16 2 4 7 1 1 23-1/2 382
26-5-10 5 10 20 2 4 7 1 1 23-1/2 475
26-5-12 5 12 24 2 4 7 1 1 25-1/2 681
26-5-14 5 14 28 2 4 7 1 1 25-1/2 777
26-5-16 5 16 32 2 4 7 1 1 25-1/2 950
26-5-18 5 18 36 2 4 7 1 1 28-1/2 1455
26-5-20 5 20 40 2 4 7 1 1 28-1/2 1603
26-5-24 5 24 48 2 4 7 1 1 28-1/2 2345
26-10-4 10 4 8 2 4 7 1-1/4 1-3/4 25-3/4 257
26-10-6 10 6 12 2 4 7 1-1/4 1-3/4 28-3/4 440
26-10-8 10 8 16 2 4 7 1-1/4 1-3/4 28-3/4 500
26-10-10 10 10 20 2 4 7 1-1/4 1-3/4 31-3/4 940
26-10-12 10 12 24 2 4 7 1-1/4 1-3/4 31-3/4 1094
26-10-14 10 14 28 2 4 7 1-1/4 1-3/4 31-3/4 1243
26-10-16 10 16 32 2 4 7 1-1/4 1-3/4 31-3/4 1388
26-10-18 10 18 36 2 4 7 1-1/4 1-3/4 34-3/4 1875
26-10-20 10 20 40 2 4 7 1-1/4 1-3/4 34-3/4 2056
26-10-24 10 24 48 2 4 7 1-1/4 1-3/4 34-3/4 2560
26-15-4 15 4 8 2-1/2 5 9 1-1/2 1-3/4 30-1/2 376
26-15-6 15 6 12 2-1/2 5 9 1-1/2 1-3/4 33-1/2 565
26-15-8 15 8 16 2-1/2 5 9 1-1/2 1-3/4 33-1/2 622
26-15-10 15 10 20 2-1/2 5 9 1-1/2 1-3/4 33-1/2 972
26-15-12 15 12 24 2-1/2 5 9 1-1/2 1-3/4 36-1/2 1319
26-15-14 15 14 28 2-1/2 5 9 1-1/2 1-3/4 36-1/2 1418
26-15-16 15 16 32 2-1/2 5 9 1-1/2 1-3/4 36-1/2 1513
26-20-4 20 4 8 2-1/2 5 9 1-1/2 2 34 445
26-20-6 20 6 12 2-1/2 5 9 1-1/2 2 37 798
26-20-8 20 8 16 2-1/2 5 9 1-1/2 2 37 900
26-20-10 20 10 20 2-1/2 5 9 1-1/2 2 37 1050
26-20-12 20 12 24 2-1/2 5 9 1-1/2 2 37 1353
