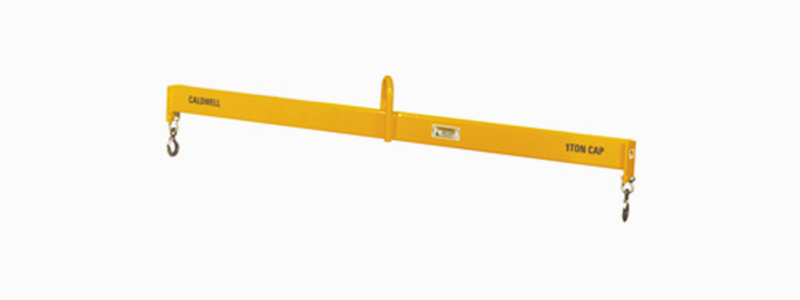

Product Features

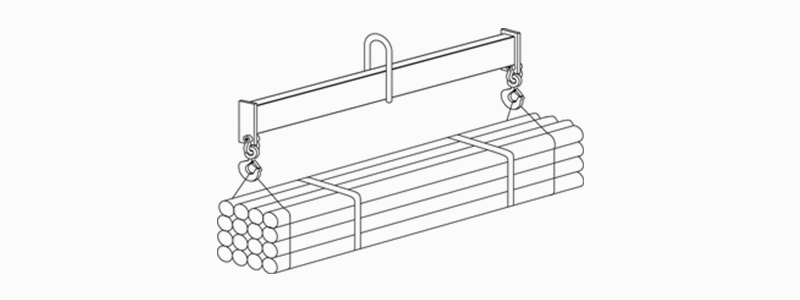

  • Provides clearance in low headroom applications.
  • Eye hooks with hook latches standard.
  • Fixed spread.
  • Complies with ASME standards.

Product Specifications


Model 19 Specifications
Model numbers shown in red are part of our QUICKSHIP program.

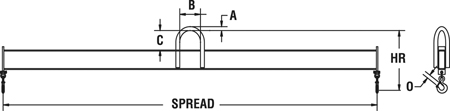

Model Number Capacity (tons) Spread (feet) A (in.) B (in.) C (in.) O (in.) HR (in.) Weight (lbs.)
19-1/2-2 1/2 2 .75 3 5 .89 13.75 20
19-1/2-3 1/2 3 .75 3 5 .89 13.75 26
19-1/2-4 1/2 4 .75 3 5 .89 13.75 33
19-1/2-6 1/2 6 .75 3 5 .89 13.75 48
19-1/2-8 1/2 8 .75 3 5 .89 14.75 75
19-1/2-10 1/2 10 .75 3 5 .89 14.75 93
19-1-2 1 2 1 6 5 .89 14.75 26
19-1-3 1 3 1 6 5 .89 14.75 35
19-1-4 1 4 1 6 5 .89 14.75 44
19-1-6 1 6 1 6 5 .89 15.75 72
19-1-8 1 8 1 6 5 .89 15.75 93
19-1-10 1 10 1 6 5 .89 16.75 131
19-2-3 2 3 1 6 5 1 17.19 45
19-2-4 2 4 1 6 5 1 17.19 55
19-2-6 2 6 1 6 5 1 20.19 108
19-2-8 2 8 1 6 5 1 20.19 140
19-2-10 2 10 1 6 5 1 20.19 188
19-3-3 3 3 1.5 6 5 1 18.50 58
19-3-4 3 4 1.5 6 5 1 20.50 87
19-3-6 3 6 1.5 6 5 1 20.50 118
19-3-8 3 8 1.5 6 5 1 20.50 222
19-3-10 3 10 1.5 6 5 1 20.50 272
