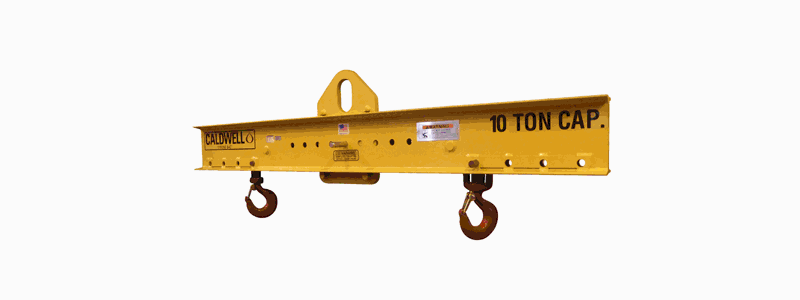

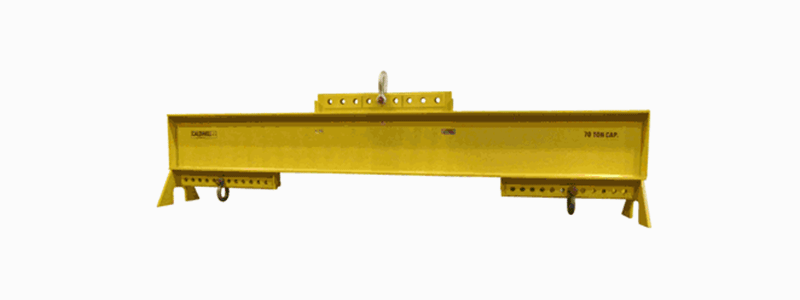

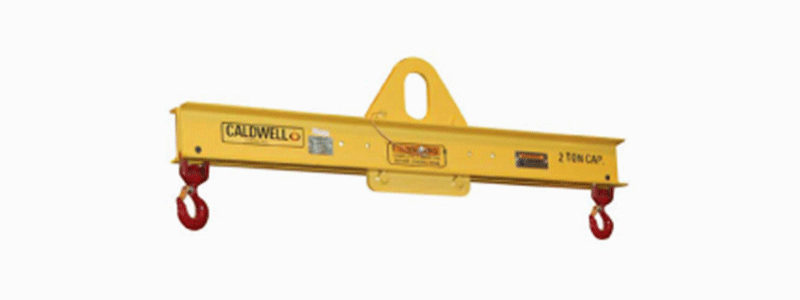

Product Features

  • Handles off center loads by adjusting the bail before a lift.
  • Adjustable spread options available.
  • Swivel hooks with hook latches standard.
  • Wide range of sizes and capacities available.
  • Complies with ASME standards.

Product Options

  • OPTION A – EXTRA HOLES – Allows for multiple hookpositioning. Specify numberand spread(s) required.
  • OPTION B – FASPINS – For ease of positioning hooks with quick release.Specify number of faspins required.
  • OPTION C – EXTRA HOOKS – Allows for multiple pick points. Specify number of hooks required.
  • OPTION D – LOWER HEADROOM – Lifting pin located betweenstructural channel. (Hoist hook information must be supplied.)

Product Specifications



Model 24 Specifications

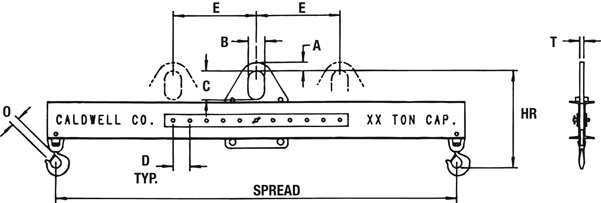

Model Number Capacity (tons) Spread (ft) A (in.) B (in.) C (in.) T (in.) O (in.) D (in.) E (in.) HR (in.) Weight (lbs.)
24-1/2-3 1/2 3 1-1/2 3 5 5/8 1 3 6 13-1/2 47
24-1/2-4 1/2 4 1-1/2 3 5 5/8 1 3 9 13-1/2 56
24-1/2-6 1/2 6 1-1/2 3 5 5/8 1 3 12 13-1/2 75
24-1/2-8 1/2 8 1-1/2 3 5 5/8 1 4 16 12-5/8 82
24-1/2-10 1/2 10 1-1/2 3 5 5/8 1 4 20 13-1/2 95
24-1/2-12 1/2 12 1-1/2 3 5 5/8 1 4 24 13-1/2 147
24-1/2-14 1/2 14 1-1/2 3 5 5/8 1 6 30 13-1/2 168
24-1/2-16 1/2 16 1-1/2 3 5 5/8 1 6 36 14-1/2 255
24-1/2-18 1/2 18 1-1/2 3 5 5/8 1 6 42 14-1/2 278
24-1/2-20 1/2 20 1-1/2 3 5 5/8 1 6 48 14-1/2 304
24-1-3 1 3 1-1/2 3 5 5/8 1 3 6 13-1/2 47
24-1-4 1 4 1-1/2 3 5 5/8 1 3 9 13-5/8 56
24-1-6 1 6 1-1/2 3 5 5/8 1 3 12 13-5/8 83
24-1-8 1 8 1-1/2 3 5 5/8 1 4 16 14-5/8 126
24-1-10 1 10 1-1/2 3 5 5/8 1 4 20 14-5/8 170
24-1-12 1 12 1-1/2 3 5 5/8 1 4 24 14-5/8 198
24-1-14 1 14 1-1/2 3 5 5/8 1 6 30 15-5/8 268
24-1-16 1 16 1-1/2 3 5 5/8 1 6 36 15-5/8 298
24-1-18 1 18 1-1/2 3 5 5/8 1 6 42 16-1/2 409
24-1-20 1 20 1-1/2 3 5 5/8 1 6 48 16-1/2 449
24-2-3 2 3 1-1/2 3 5 3/4 1 3 6 14 48
24-2-4 2 4 1-1/2 3 5 3/4 1 3 9 15-1/8 89
24-2-6 2 6 1-1/2 3 5 3/4 1 3 12 15-1/8 117
24-2-8 2 8 1-1/2 3 5 3/4 1 4 16 16-1/8 170
24-2-10 2 10 1-1/2 3 5 3/4 1 4 20 18-1/2 240
24-2-12 2 12 1-1/2 3 5 3/4 1 4 24 17-1/8 278
24-2-14 2 14 1-1/2 3 5 3/4 1 6 30 18-1/4 416
24-2-16 2 16 1-1/2 3 5 3/4 1 6 36 18-1/4 416
24-2-18 2 18 1-1/2 3 4 3/4 1 6 42 19-1/2 547
24-2-20 2 20 1-1/2 3 5 3/4 1 6 48 19-1/2 605
24-5-3 5 3 2 4 7 1 1 3 6 21-1/2 140
24-5-4 5 4 2 4 7 1 1 3 9 21-1/2 215
24-5-6 5 6 2 4 7 1 1 3 12 21-1/2 215
24-5-8 5 8 2 4 7 1 1 4 16 22-1/2 304
24-5-10 5 10 2 4 7 1 1 4 20 23-1/2 430
24-5-12 5 12 2 4 7 1 1 4 24 27 633
24-5-14 5 14 2 4 7 1 1-1/2 6 30 27 664
24-5-16 5 16 2 4 7 1 1-1/2 6 36 28 746
24-5-18 5 18 2 4 7 1 1-1/2 6 42 29 1321
24-5-20 5 20 2 4 7 1 1-1/2 6 48 30-3/8 1525
24-10-3 10 3 2 4 7 1-1/4 1-3/4 3 6 25-3/4 210
24-10-4 10 4 2 4 7 1-1/4 1-3/4 3 9 25-3/4 211
24-10-6 10 6 2 4 7 1-1/4 1-3/4 3 12 28-3/4 432
23-10-8 10 8 2 4 7 1-1/4 1-3/4 4 16 28-3/4 522
24-10-10 10 10 2 4 7 1-1/4 1-3/4 4 20 31-3/4 759
24-10-12 10 12 2 4 7 1-1/4 1-3/4 4 24 31-3/4 993
24-10-14 10 14 2 4 7 1-1/4 1-3/4 6 30 31-3/4 1128
24-10-16 10 16 2 4 7 1-1/4 1-3/4 6 36 31-3/4 1257
24-10-18 10 18 2 4 7 1-1/4 1-3/4 6 42 34-3/4 1908
24-15-3 15 3 2-1/2 5 9 1-1/2 2 3 6 28-/14 252
24-15-4 15 4 2-1/2 5 9 1-1/2 2 3 9 30-1/2 330
24-15-10 15 10 2-1/2 5 9 1-1/2 2 4 20 33-1/2 882
24-15-8 15 8 2-1/2 5 9 1-1/2 2 4 16 33-1/2 542
24-15-6 15 6 2-1/2 5 9 1-1/2 2 3 12 33-1/2 502
24-15-12 15 12 2-1/2 5 9 1-1/2 2 4 24 37 1455
24-15-16 15 16 2-1/2 5 9 1-1/2 2 6 36 37 1800
24-15-14 15 14 2-1/2 5 9 1-1/2 2 6 30 37 1630
24-20-3 20 3 2-1/2 5 9 1-1/2 2 3 6 31 315
24-20-8 20 8 2-1/2 5 9 1-1/2 2 4 16 34 720
24-20-4 20 4 2-1/2 5 9 1-1/2 2 3 9 34 399
24-20-10 20 10 2-1/2 5 9 1-1/2 2 4 20 37 1276
24-20-12 20 12 2-1/2 5 9 1-1/2 2 4 24 37 1251
24-10-20 10 20 2 4 7 1-1/4 1-3/4 6 48 34-3/4 1908
24-20-6 20 6 2-1/2 5 9 1-1/2 2 3 12 37 735
