Posi-Leveler™ Motorized Load Leveler
The Posi-Leveler™ allows for motorized adjustment of the beams central lifting point during the lift to always maintain a balanced load. This feature can be used for fine adjustment of the center of gravity during the lift. Leveling uneven loads during the lift saves rigging time and promotes a safer work environment.

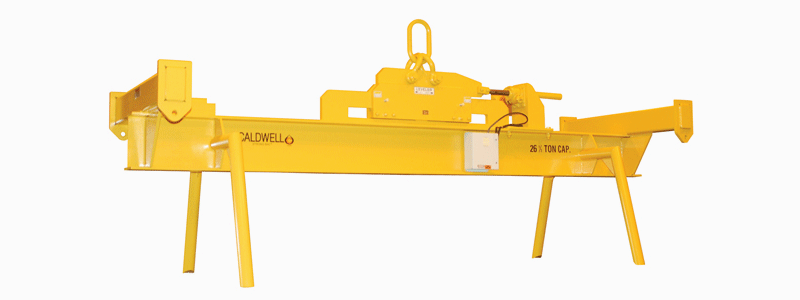

Model 26P Posi-Leveler™ Motorized Load Leveler shown with special hooks.
Product Features
- Motorized Posi-Leveler™ adjusts to the center of gravity during lift.
- Swivel hooks with hook latches are standard.
- Custom sizes are available.
- Push button pendent control with radio control option.
- Standard bail adjustment 6″ each side of center, with optional 12″ adjustment each side of center available.
- Complies with ASME standards.
Ideal for

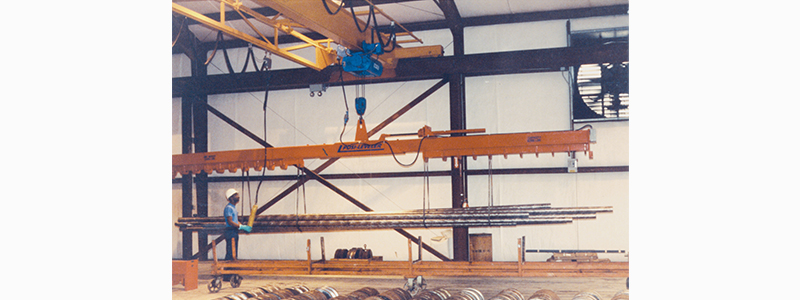

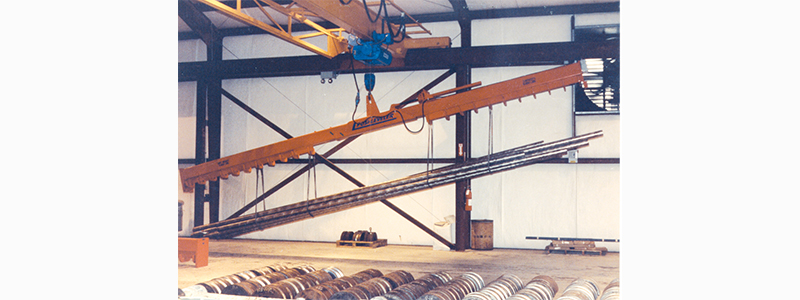

- Bundles
- Odd or irregular shaped loads
- Weldments
- Paper roll handling
- Sheet handling
Product Specifications

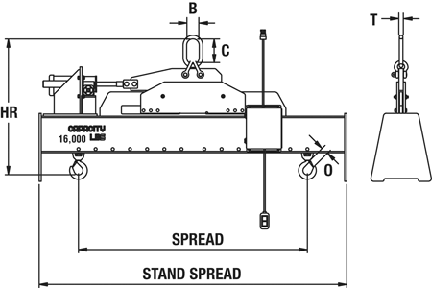

| Model 26 Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Capacity (tons) | Spread (ft) | B (in.) | C (in.) | T (in.) | O (in.) | HR (in.) | Weight (lbs.) |
| 26P-2-8 | 2 | 8 | 2.8 | 4.8 | 3/4 | 1 | 28.7 | 370 |
| 26P-2-10 | 2 | 10 | 2.8 | 4.8 | 3/4 | 1 | 29.7 | 435 |
| 26P-2-12 | 2 | 12 | 2.8 | 4.8 | 3/4 | 1 | 29.7 | 465 |
| 26P-2-14 | 2 | 14 | 2.8 | 4.8 | 3/4 | 1 | 33 | 575 |
| 26P-2-16 | 2 | 16 | 2.8 | 4.8 | 3/4 | 1 | 33 | 620 |
| 26P-2-18 | 2 | 18 | 2.8 | 4.8 | 3/4 | 1 | 35 | 805 |
| 26P-2-20 | 2 | 20 | 2.8 | 4.8 | 3/4 | 1 | 35 | 880 |
| 26P-2-24 | 2 | 24 | 2.8 | 4.8 | 3/4 | 1 | 37.4 | 1300 |
| 26P-3-8 | 3 | 8 | 2.8 | 4.8 | 3/4 | 1 | 30.3 | 405 |
| 26P-3-10 | 3 | 10 | 2.8 | 4.8 | 3/4 | 1 | 31.3 | 480 |
| 26P-3-12 | 3 | 12 | 2.8 | 4.8 | 3/4 | 1 | 33.3 | 610 |
| 26P-3-14 | 3 | 14 | 2.8 | 4.8 | 3/4 | 1 | 33.3 | 695 |
| 26P-3-16 | 3 | 16 | 2.8 | 4.8 | 3/4 | 1 | 33.3 | 760 |
| 26P-3-18 | 3 | 18 | 2.8 | 4.8 | 3/4 | 1 | 33.3 | 820 |
| 26P-3-20 | 3 | 20 | 2.8 | 4.8 | 3/4 | 1 | 35.3 | 1015 |
| 26P-3-24 | 3 | 24 | 2.8 | 4.8 | 3/4 | 1 | 38.3 | 1300 |
| 26P-5-8 | 5 | 8 | 3.5 | 6.0 | 1 | 1 | 36.8 | 620 |
| 26P-5-10 | 5 | 10 | 3.5 | 6.0 | 1 | 1 | 36.8 | 680 |
| 26P-5-12 | 5 | 12 | 3.5 | 6.0 | 1 | 1 | 38.8 | 875 |
| 26P-5-14 | 5 | 14 | 3.5 | 6.0 | 1 | 1 | 38.8 | 990 |
| 26P-5-16 | 5 | 16 | 3.5 | 6.0 | 1 | 1 | 38.8 | 1070 |
| 26P-5-18 | 5 | 18 | 3.5 | 6.0 | 1 | 1 | 43.8 | 1640 |
| 26P-5-20 | 5 | 20 | 3.5 | 6.0 | 1 | 1 | 43.8 | 1800 |
| 26P-5-24 | 5 | 24 | 3.5 | 6.0 | 1 | 1 | 44.8 | 2380 |
| 26P-7 1/2-10 | 7-1/2 | 10 | 4.4 | 7.5 | 1-1/4 | 1-/34 | 46.8 | 1105 |
| 26P-7 1/2-12 | 7-1/2 | 12 | 4.4 | 7.5 | 1-1/4 | 1-3/4 | 46.8 | 1185 |
| 26P-7 1/2-14 | 7-1/2 | 14 | 4.4 | 7.5 | 1-1/4 | 1-3/4 | 49.5 | 1680 |
| 26P-7 1/2-16 | 7-1/2 | 16 | 4.4 | 7.5 | 1-1/4 | 1-3/4 | 49.5 | 1815 |
| 26P-7 1/2-18 | 7-1/2 | 18 | 4.4 | 7.5 | 1-1/4 | 1-3/4 | 49.5 | 1950 |
| 26P-10-10 | 10 | 10 | 4.4 | 7.5 | 1-1/4 | 1-3/4 | 49.5 | 1475 |
| 26P-10-12 | 10 | 12 | 4.4 | 7.5 | 1-1/4 | 1-3/4 | 49.5 | 1610 |
| 26P-10-14 | 10 | 14 | 4.4 | 7.5 | 1-1/4 | 1-/34 | 49.5 | 1780 |
| 26P-10-16 | 10 | 16 | 4.4 | 7.5 | 1-1/4 | 1-3/4 | 49.5 | 1915 |
| 26P-10-18 | 10 | 18 | 4.4 | 7.5 | 1-1/4 | 1-3/4 | 52.5 | 2375 |
| 26P-15-10 | 15 | 10 | 5.3 | 9.6 | 1-1/2 | 1-3/4 | 52.7 | 1625 |
| 26P-15-12 | 15 | 12 | 5.3 | 9.6 | 1-1/2 | 1-3/4 | 55.7 | 1980 |
| 26P-15-14 | 15 | 14 | 5.3 | 9.6 | 1-1/2 | 1-3/4 | 55.7 | 2190 |
| 26P-20-10 | 20 | 10 | 6.0 | 10.0 | 1-3/4 | 2 | 64 | 1965 |
| 26P-20-12 | 20 | 12 | 6.0 | 10.0 | 1-3/4 | 2 | 64 | 2130 |
