Three Point Beam

This low headroom lifting beam handles large loads using multiple pick points. Each unit is custom designed for your specific application. Complies with ASME standards.

1/2 ton Model 27T with Option B, Adjustable Bail.

Model 27T-20-52/47.6 Three Point Lifting Beam, 20 ton capacity shown.

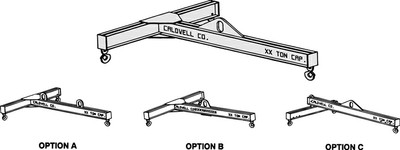

OPTION A MULTIPLE BAILS – Use 2 hoists to increase lifting stability.
OPTION B ADJUSTABLE BAIL – Is used when load-leveling capability is required along length of load.
OPTION C ADJUSTABLE SPREAD – Use when adjustability in length and width is required.

Product Specifications
