Product Features

  • ‘I’ beam construction.
  • Three spreads to adjust to the load- Outside spread- Middle spread (outside less 1’)- Inside spread (outside less 2’).
  • Swivel hooks with hook latches standard.
  • Wide range of sizes and capacities available.
  • Complies with ASME standards.

Product Options

  • OPTION A: Extra Holes of Different Placement of Holes – Allows multiple hook positioning beyond standard 3 spreads. Specify number and spread(s) required.
  • OPTION B: Extra Shackles and Swivel Hooks – Allows for multiple pick points or eliminated the need to move hardware for different size loads.

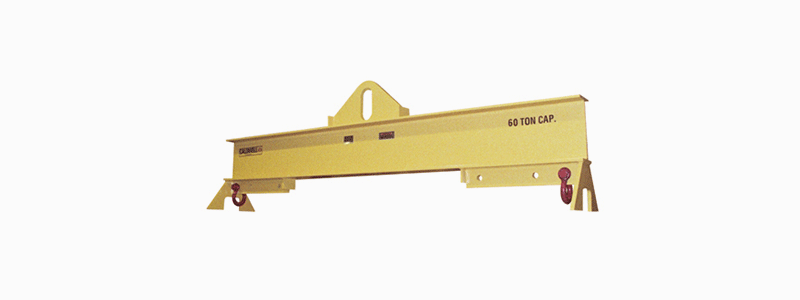

  • OPTION C: Built In Stand – Keeps beam upright for easy crane hook attachment (pictured above).

Product Specifications

Model 20H Specifications
Model Number Capacity (tons) Spread (ft) A (in.) B (in.) C (in.) T (in.) O (in.) HR (in.) Weight (lbs)
20H-1-30 1 30 7/8 3 5 3/4 7/8 27.5 1500
20H-1-34 1 34 7/8 3 5 3/4 7/8 24 1605
20H-1-38 1 38 7/8 3 5 3/4 7/8 24 2120
20H-1-42 1 42 7/8 3 5 3/4 7/8 26 2810
20H-2-30 2 30 7/8 3 5 3/4 7/8 27.5 1600
20H-2-34 2 34 1.1/2 3 5 1 7/8 24 2130
20H-2-38 2 38 1.1/2 3 5 1 7/8 24.5 2680
20H-2-42 2 42 1.1/2 3 5 1 7/8 26.5 3410
20H-3-30 3 30 1-1/4 3 5 1 1 29.5 1900
20H-3-34 3 34 1.1/2 3 5 1 1 27.25 2070
20H-3-38 3 38 1.1/2 3 5 1 1 27.5 3110
20H-3-42 3 42 1.1/2 3 5 1 1 29 3890
20H-5-30 5 30 2 4 7 1-1/4 1-15/16 31.75 2310
20H-5-34 5 34 2 4 7 1.1/4 1.3/8 32 3130
20H-5-38 5 38 2 4 7 1.1/4 1.3/8 34 3950
20H-5-42 5 42 2 4 7 1.1/4 1.3/8 34 4760
20H-7 1/2-20 7-1/2 20 2 4 7 1-1/4 1-1/2 34.75 1325
20H-7 1/2-24 7-1/2 24 2 4 7 1-1/4 1-1/2 34.75 1890
20H-7 1/2-30 7-1/2 30 2 4 7 1-1/4 1-1/2 35 2760
20H-7 1/2-34 7.5 34 2 4 7 1.1/4 1.5/8 36.75 3560
20H-7 1/2-38 7.5 38 2 4 7 1.1/4 1.3/8 37 4760
20H-7 1/2-42 7.5 42 2 4 7 1.1/4 1.5/8 37 5730
20H-10-20 10 20 2 4 7 1-1/4 1-9/16 35.75 1465
20H-10-24 10 24 2 4 7 1-1/4 1-9/16 36 2075
20H-10-30 10 30 2 4 7 1-1/4 1-9/16 37.75 3150
20H-10-38 10 38 2 4 7 1.1/4 1.5/8 38 5230
20H-10-34 10 34 2 4 7 1.1/4 1.5/8 38 4300
20H-10-42 10 42 2 4 7 1.1/4 1.5/8 38.50 6910
20H-15-16 15 16 2-1/2 5 9 1-1/2 2-1/16 41.5 1361
20H-15-18 15 18 2-1/2 5 9 1-1/2 2-1/16 41.75 1610
20H-15-20 15 20 2-1/2 5 9 1-1/2 2-1/16 42 1915
20H-15-24 15 24 2-1/2 5 9 1-1/2 2-1/16 43.5 2690
20H-15-30 15 30 2-1/2 5 9 1-1/2 2-1/16 42.25 4255
20H-15-34 15 34 2.1/2 5 9 1.1/2 2.1/16 42.25 4230
20H-15-38 15 38 2.1/2 5 9 1.1/2 2.1/16 42.50 6340
20H-15-42 15 42 2.1/2 5 9 1.1/2 2.1/16 43 8420
20H-20-14 20 14 2-1/2 5 9 1-1/2 2-1/4 54.75 1210
20H-20-16 20 16 2-1/2 5 9 1-1/2 2-1/4 46 1510
20H-20-18 20 18 2-1/2 5 9 1-1/2 2-1/4 46.25 1885
20H-20-20 20 20 2-1/2 5 9 1-1/2 2-1/4 48 2225
20H-20-24 20 24 2-1/2 5 9 1-1/2 2-1/4 48.5 3155
20H-20-30 20 30 2-1/2 5 9 1-1/2 2-1/4 49.25 5040
20H-20-34 20 34 2.3/4 5 9 1.1/2 2.1/4 49.25 62.50
20H-20-38 20 38 2.3/4 5 9 1.1/2 2.1/4 55.25 8170
20H-20-42 20 42 2.3/4 5 9 1.1/2 2.1/4 55.5 9930
20H-25-14 25 14 3 6 12 1-3/4 2-1/4 54.75 1540
20H-25-16 25 16 3 6 12 1-3/4 2-1/4 55 1900
20H-25-18 25 18 3 6 12 1-3/4 2-1/4 56.75 2230
20H-25-20 25 20 3 6 12 1-3/4 2-1/4 59.75 2725
20H-25-24 25 24 3 6 12 1-3/4 2-1/4 60 3685
20H-25-30 25 30 3 6 12 1-3/4 2-1/4 60.75 5530
20H-25-34 25 34 3 6 12 1.3/4 2.1/4 64 7425
20H-25-38 25 38 3 6 12 1.3/4 2.1/4 64.5 9100
20H-25-42 25 42 3 6 12 1.3/4 2.1/4 67.25 11235
20H-30-10 30 10 3-1/2 7 16 2 2-1/4 54.5 1150
20H-30-12 30 12 3-1/2 7 16 2 2-1/4 56.5 1395
20H-30-14 30 14 3-1/2 7 16 2 2-1/4 56.5 1695
20H-30-18 30 18 3-1/2 7 16 2 2-1/4 62.25 2380
20H-30-16 30 16 3-1/2 7 16 2 2-1/4 56.75 2050
20H-30-20 30 20 3-1/2 7 16 2 2-1/4 62.5 2850
20H-30-24 30 24 3-1/2 7 16 2 2-1/4 63 4040
20H-30-30 30 30 3-1/2 7 16 2 2-1/4 68.75 5725
20H-30-34 30 34 3.1/2 7 16 2 2.1/4 71.75 7930
20H-30-38 30 38 3.1/2 7 16 2 2.1/4 69.75 10100
20H-30-42 30 42 3.1/2 7 16 2 2.1/4 70 12300
20H-40-8 40 8 3-1/2 7 16 2-1/2 3 65.75 1200
20H-40-10 40 10 3-1/2 7 16 2-1/2 3 66.25 1550
20H-40-12 40 12 3-1/2 7 16 2-1/2 3 66.25 1840
20H-40-14 40 14 3-1/2 7 16 2-1/2 3 66.25 2220
20H-40-16 40 16 3-1/2 7 16 2-1/2 3 68.75 2400
20H-40-18 40 18 3-1/2 7 16 2-1/2 3 69.25 3100
20H-40-20 40 20 3-1/2 7 16 2-1/2 3 72 3680
20H-40-24 40 24 3-1/2 7 16 2-1/2 3 75.25 4920
20H-40-30 40 30 3-1/2 7 16 2-1/2 3 78.5 6810
20H-40-34 40 34 3.1/2 7 16 2.1/2 3 77 9310
20H-40-38 40 38 3./2 7 16 2.1/2 3 80 11500
20H-40-42 40 42 3.1/2 7 16 2.1/2 3 83 14510
