Adjustable Lifting Beam
Versatile beam had adjustable spreaders and lifting bail standard to allow for handling of a wide range of loads with a single lifting beam. Product can be used with provided shackles or add optional hooks for increased versatilitiy.

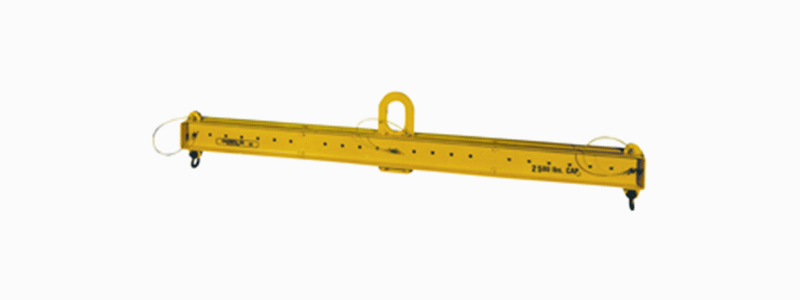

Model 17 Adjustable Lifting Beam.
Product Features
- Bail adjusts horizontally for lifting unbalanced loads.
- Provides clearance in low headroom applications.
- Spread adjusts in 6” increments along lifting beam.
- Shackles included.
- Optional swivel hooks available.
- Complies with ASME standards.
Product Options
- OPTION S- Pair of swivel hooks
Product Specifications
| Model 17 Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensional Information | |||||||||||
| Model numbers shown in green are part of our INSTOCK program. | |||||||||||
| Model Number | Rated Cap. (tons) | Max Spread (in.) | Min. Spread (in.) | Bail Adj.(in.) | D (in.) | HR (in.) | A (in.) | B (in.) | C (in.) | T (in.) | Weight (lbs.) |
| 17-1.1/4-6 | 1.1/4 | 72 | 36 | 24 | 3 | 14.7 | 1 1/2 | 3 | 5 | 5/8 | 150 |
| 17-2-6 | 2 | 72 | 36 | 24 | 3 | 14.7 | 1 1/2 | 3 | 5 | 5/8 | 155 |
| 17-4-8 | 4 | 96 | 54 | 36 | 6 | 19.8 | 2 | 4 | 7 | 3/4 | 285 |
| 17-5-10 | 5 | 120 | 60 | 36 | 6 | 22.4 | 2 | 4 | 7 | 1 | 475 |
|
Bolt Type Anchor Shackles are standard.
|
|||||||||||
